[White Paper] The Future of Display: Optical Inspection Challenges in MicroLED Mass Production

Abstract

#

MicroLED is regarded by the industry as the “ultimate display technology”—it inherits the high efficiency, high brightness, and long lifespan of LEDs while enabling independent control of self-luminescent pixels. However, a series of severe manufacturing and inspection challenges lie between laboratory samples and mass production. MicroLED chip sizes have shrunk to below 50 microns, with a single display panel integrating millions or even tens of millions of independent chips. The yield requirement for Mass Transfer processes must reach 99.99% or higher—these technical indicators pose unprecedented demands on optical inspection systems.

Starting from the basic principles of MicroLED technology, this white paper systematically analyzes the yield challenges brought by mass transfer processes, deeply explores the unique advantages and technical bottlenecks of Imaging Colorimeters in MicroLED inspection, and provides an outlook on frontier directions such as AI-assisted defect classification and real-time inline compensation.

I. MicroLED Technology Overview

#

1.1 Fundamental Differences from LCD and OLED

#

Understanding MicroLED inspection challenges first requires understanding its essential differences from preceding display technologies.

LCD (Liquid Crystal Display): Liquid crystals do not emit light themselves but rely on a backlight (typically LED) for illumination. The liquid crystal layer modulates the transmittance of each pixel by controlling light polarization. LCD inspection focuses on backlight uniformity, liquid crystal alignment consistency, and polarizer quality. Since the backlight is shared, a “failure” of an individual pixel mainly manifests as a grayscale or color deviation rather than total darkness.

OLED (Organic Light Emitting Diode): Each pixel is a self-luminescent unit composed of organic light-emitting materials. OLED pixels are formed directly on the substrate via evaporation or printing processes; there is no concept of “transfer.” OLED inspection challenges mainly involve brightness decay (burn-in) due to organic material degradation and Mura caused by evaporation non-uniformity.

MicroLED: Each pixel consists of independent inorganic GaN or InGaN micro-LED chips. These chips are grown on an epitaxial wafer, then stripped from the wafer and placed onto a target backplane through a mass transfer process. This “grow-then-transfer” manufacturing paradigm introduces entirely new challenges not present in LCD or OLED:

• Inherent Differences between Chips: Even on the same epitaxial wafer, MicroLED chips at different positions exhibit variations in dominant wavelength, luminous intensity, and forward voltage. These differences can be suppressed in OLED through uniform control of a continuous thin film, but in MicroLED, each chip is an independent individual.
• Defects Introduced by Transfer: The mass transfer process may lead to missing dies, misalignment, flips, or damage to the chips.
• Electrical Interconnection Challenges: MicroLED chips must achieve electrical connection with the driving circuitry on the backplane. The quality of this connection directly affects the chip’s actual light-emitting performance.

1.2 Key Performance Advantages of MicroLED

#

MicroLED is called the “ultimate display technology” due to its theoretical advantages in several key metrics:

1.3 MicroLED Application Prospects and Market Progress

#

The commercialization of MicroLED technology is moving from proof-of-concept to early mass production. As of 2025, nearly 30 MicroLED wafer fabrication lines and pilot lines worldwide are under construction or in production. More than 15 equipment manufacturers provide over 20 types of mass transfer equipment. The first batch of low-volume commercial products has entered the market, including MicroLED displays for wearables and external displays for special vehicles.

Main application directions include:

• Large-format Commercial Displays and High-end TVs: Samsung has introduced 89-inch and 110-inch MicroLED TVs targeting high-end markets with ultra-high brightness and ultra-long lifespan.
• Wearable Devices: Smartwatches are one of the earliest consumer-level scenarios for MicroLED, as their small size reduces mass transfer difficulty.
• AR/VR Microdisplays: MicroLED’s high brightness and fast response make it an ideal light source for augmented reality devices.
• Automotive Displays: The temperature resistance and long life of inorganic materials give MicroLED a natural advantage in automotive environments.

II. Mass Transfer Process and Its Yield Challenges

#

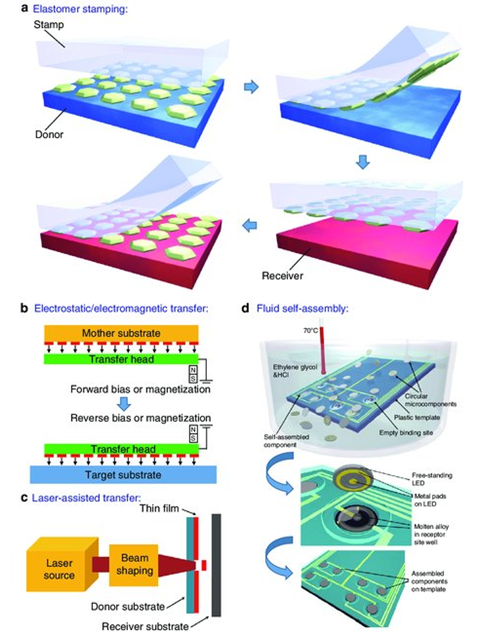

2.1 Mass Transfer Technology Routes

#

Mass Transfer is the most core and challenging process step in MicroLED manufacturing. Its goal is to accurately transfer millions of micron-scale LED chips from the growth substrate to the target substrate. Major technology routes include:

Pick-and-Place: Using precision robotic arms or elastomeric stamps to “pick” chips from the source substrate and “place” them onto specified positions on the target substrate. This is the most intuitive method, but the number of chips transferred per cycle and the speed are limited by stamp area and mechanical precision.

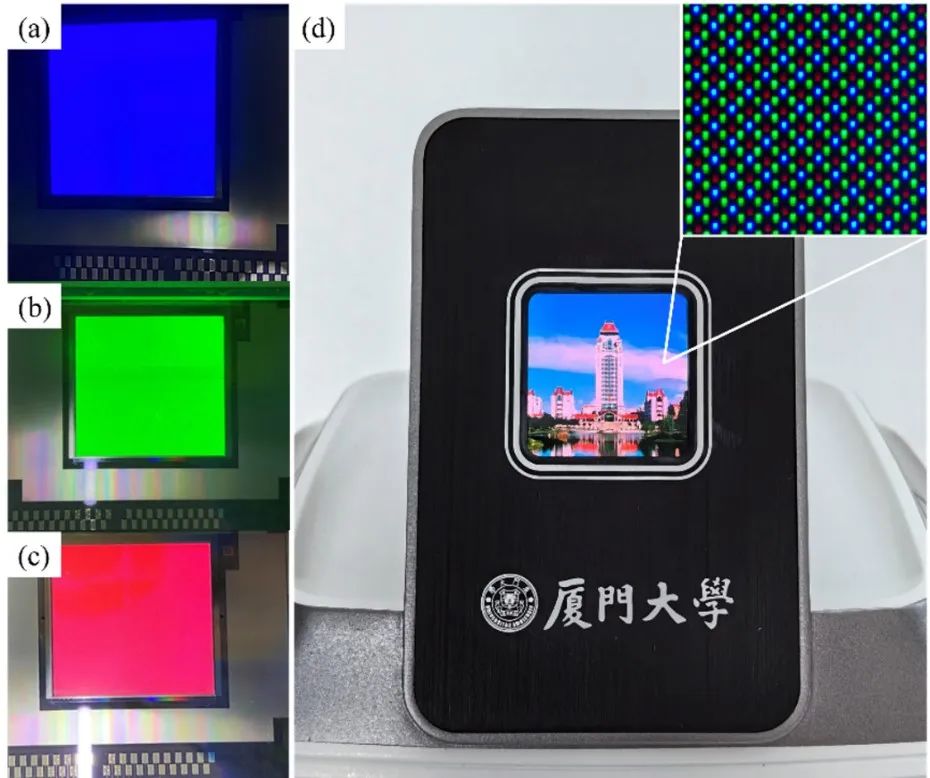

Laser Transfer: Using laser pulses to selectively release chips from a transparent growth substrate and eject them onto the target substrate. Laser transfer offers high selectivity and potentially high speeds but requires precise laser energy control to avoid chip damage.

Fluidic Self-Assembly: Dispersing MicroLED chips in a liquid and allowing them to spontaneously fall into correct positions on the substrate through shape matching and surface energy differences between chips and preset recesses. This method theoretically enables ultra-high parallelism but demands extreme consistency in chip size and substrate pattern precision.

Electrostatic/Electromagnetic Transfer: Utilizing electrostatic or electromagnetic forces to pick and place chips in batches. Bipolar electrostatic transfer heads combined with electromagnetic adsorption technology have demonstrated transfer yields exceeding 99.999%.

2.2 Mathematical Constraints on Yield

#

Yield requirements for MicroLED displays are extremely strict, stemming from a simple mathematical fact:

A 4K (3840x2160) MicroLED display panel using an RGB subpixel structure requires a total of 3840 x 2160 x 3 ≈ 24.88 million MicroLED chips.

If the transfer yield is 99.9% (a 1/1000 defect rate), approximately 24,880 defective chips will appear on a single panel. Assuming these defects are uniformly distributed, there would be several dead pixels per square centimeter—completely unacceptable for consumer display products.

To control the number of dead pixels per panel to single digits, the transfer yield must reach 99.9999% (a 1/1,000,000 defect rate, often called “6N” yield). This goal places extraordinarily harsh demands on the entire manufacturing chain—from epitaxial growth and chip preparation to mass transfer.

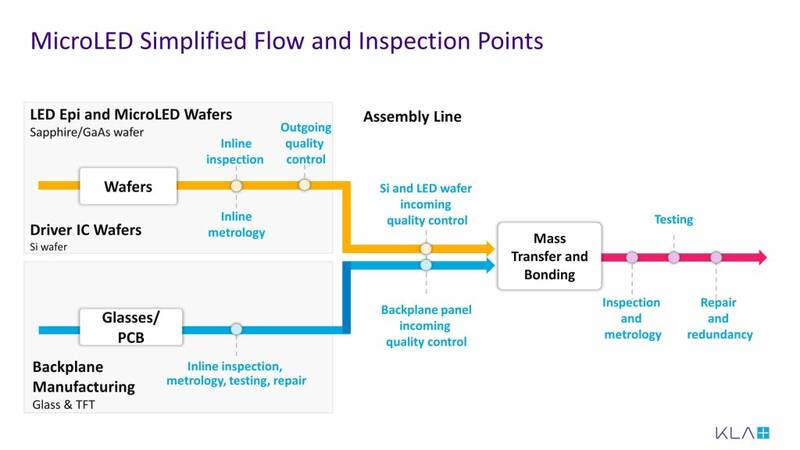

2.3 The “Test-Repair” Loop for Yield Improvement

#

Facing such strict yield requirements, the industry’s core strategy is the “Test-Repair Loop”:

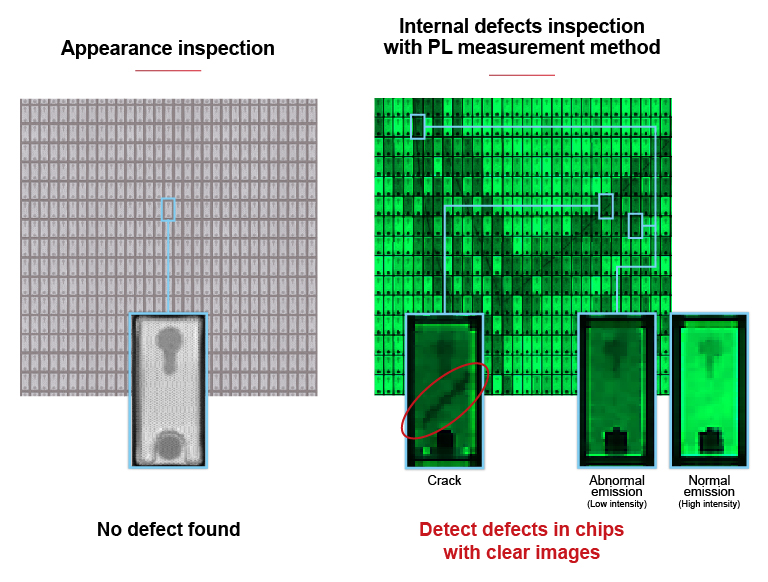

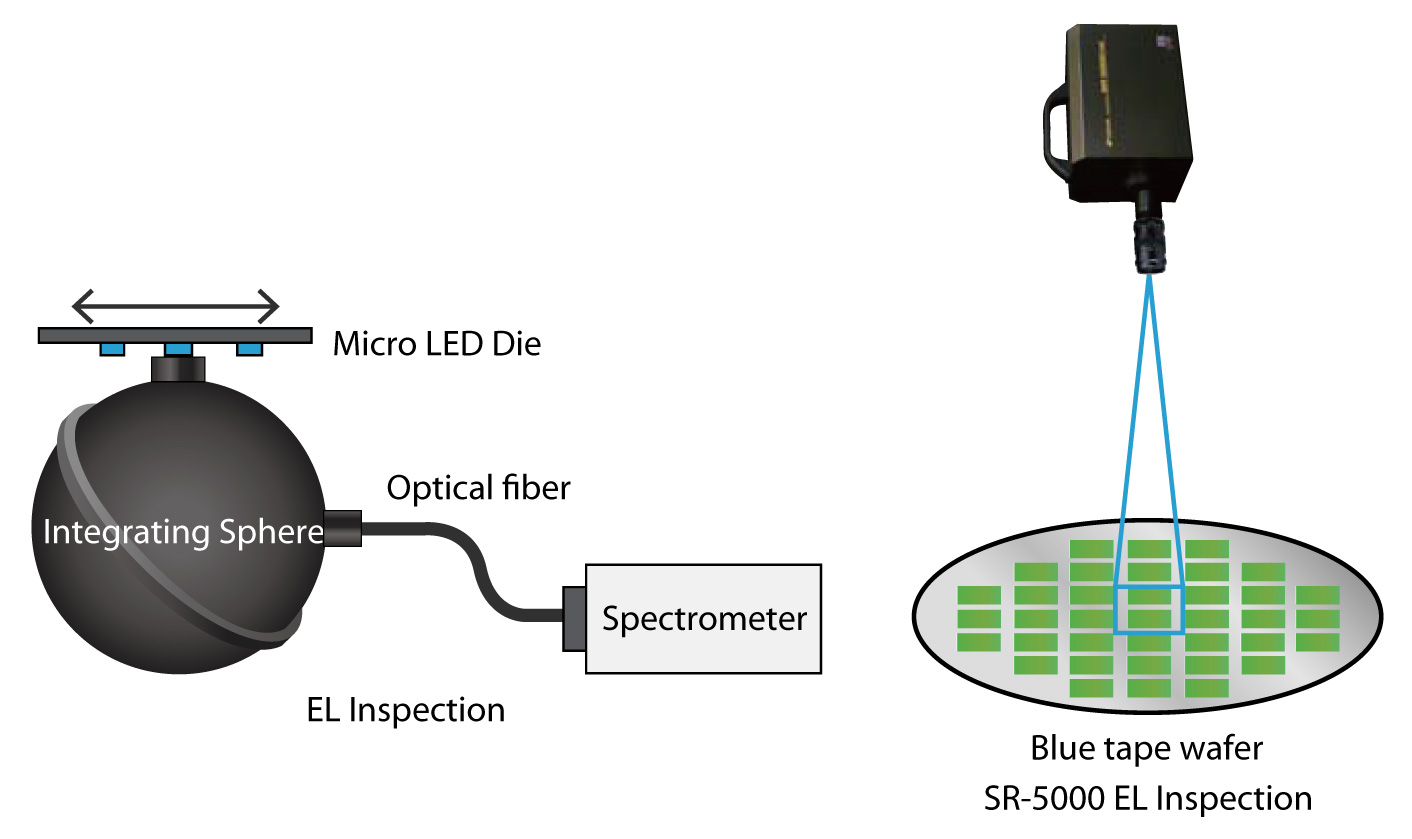

1. Pre-transfer Inspection: Performing Electroluminescence (EL) or Photoluminescence (PL) testing on each MicroLED chip on the epitaxial wafer to screen out defective chips and establish a chip-level Quality Map.
2. Selective Transfer: Only transferring qualified chips (or avoiding positions of known defective chips) based on the Quality Map.
3. Post-transfer Inspection: Conducting comprehensive optical inspection of all chips on the target substrate to identify missing, displaced, damaged, or underperforming chips.
4. Defect Repair: Repairing detected defect positions—usually by removing defective chips and re-placing qualified ones.
5. Post-repair Verification: Re-inspecting the repaired area to confirm success.

In this loop, the speed and accuracy of optical inspection directly determine the efficiency and cost of the entire manufacturing process. If inspection becomes a bottleneck, it will slow down the Takt Time of the entire production line.

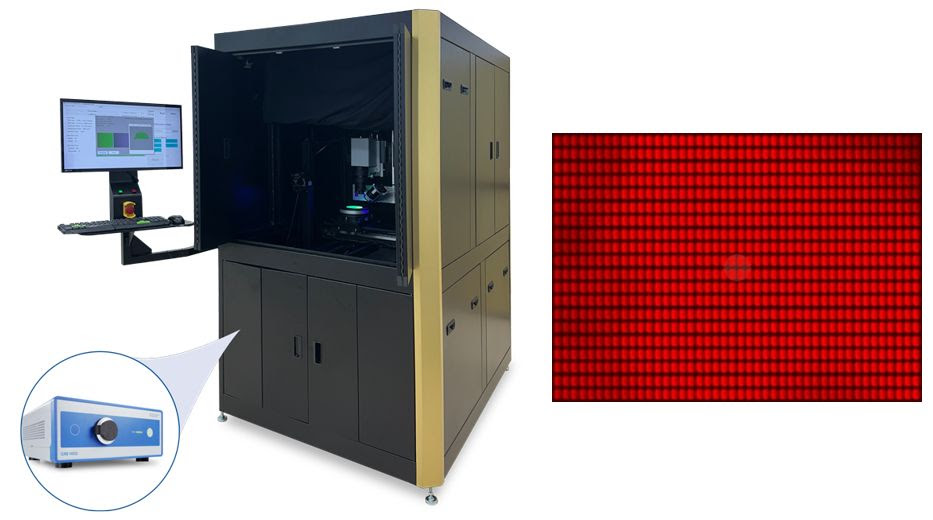

III. Post-Transfer Optical Inspection Requirements

#

3.1 Dead Pixel Detection

#

Dead pixels—chips that are completely dark or emit light abnormally—are the most basic defect type in MicroLED manufacturing. Dead pixels may stem from:

• Chips missing or damaged during transfer.
• Failure of electrical connection between the chip and the substrate.
• Structural defects in the chip itself.

Dead pixel detection requires the optical system to identify every dark or abnormal chip location across the entire panel. Considering tens of millions of chips on a single panel, this poses extreme demands on spatial resolution and processing speed.

3.2 Luminance Uniformity

#

Even if all chips emit light normally, luminance differences between chips can cause visible “graininess” or “clouding” in the display image. Luminance uniformity inspection requires measuring the absolute luminance value of each chip and calculating statistical characteristics of the full-panel luminance distribution (e.g., standard deviation, max-min ratio).

MicroLED luminance non-uniformity primarily originates from:

• Wafer-level luminance distribution differences during epitaxial growth.
• Luminance differences between different wafer batches (when chips from multiple wafers are mixed).
• Variations in electrical connection quality after mass transfer.

3.3 Color Consistency

#

Color consistency is one of the most challenging metrics in MicroLED inspection. The color of a MicroLED display is determined by the wavelength and luminance ratios of the RGB primary chips. Wavelength differences between chips (typically in the range of a few nanometers) directly manifest as deviations in color coordinates.

The acceptable range for color coordinate deviation depends on the application. Consumer displays typically require the chromaticity uniformity of the White Point to deviate by no more than 0.02 in the CIE 1976 u’v’ color space (corresponding to ~2-3 MacAdam ellipses). Reaching this standard requires precise measurement of the color coordinates of each subpixel and compensation through driving current adjustments.

IV. Limitations of Traditional Inspection Methods

#

4.1 Speed Bottleneck of Spot Spectroradiometers

#

Traditional spectroradiometers provide high-precision spectral and chromaticity measurements but can only measure one spatial point at a time. For a MicroLED panel containing tens of millions of chips, the time cost of point-by-point measurement is unacceptable. Even with the fastest spot measurement instrument (0.1 seconds per point), measuring all subpixels of a 4K panel would take approximately 28 days.

4.2 Inefficiency of Push-broom Hyperspectral Systems

#

Push-broom hyperspectral imaging systems can acquire complete spectral information for a line of pixels in a single scan. While significantly more efficient than spot measurement, scanning an entire panel still takes a long time, and the equipment is bulky, power-intensive, and expensive. Furthermore, push-broom systems require relative motion during scanning, increasing mechanical complexity.

4.3 Functional Deficiencies of Standard Industrial Cameras

#

High-resolution industrial cameras (such as area CMOS cameras) offer high speed and resolution, quickly capturing images of an entire panel. However, standard industrial cameras only provide grayscale or RGB images—they measure sensor response rather than physical photometric quantities. Without precise photometric and chromatic calibration, industrial cameras cannot provide luminance values in cd/m² or chromaticity values in CIE coordinates. This means they can be used for qualitative dead pixel detection (“on” vs “off”) but cannot meet requirements for quantitative luminance uniformity assessment and color consistency analysis.

V. Unique Advantages of Imaging Colorimeters in MicroLED Inspection

#

5.1 Efficiency Advantage of Spatially Parallel Measurement

#

The core advantage of imaging colorimeters lies in combining high-resolution area imaging with precise photometric and chromatic measurement. A 29MP imaging colorimeter can simultaneously measure the luminance and color coordinates of approximately 29 million spatial points in a single exposure—meaning it can cover a vast number of MicroLED chips on a panel in one shot.

For a 4K MicroLED panel (~24.88 million subpixels), a 29MP imaging colorimeter could theoretically cover all subpixels in a single shot, with each subpixel corresponding to ~1 sensor pixel. If higher precision is needed (e.g., 3-5 sensor pixels per subpixel), a 61MP or higher sensor is required, or tiled capture with stitching.

5.2 Accuracy Assurance through Metrological Traceability

#

Imaging colorimeters use CIE-standard-matched tristimulus filters to convert sensor photoelectric responses into photometric and chromatic quantities consistent with human visual perception. Their measurement results (luminance, color coordinates) have clear physical units and traceable metrological accuracy, which standard industrial cameras lack.

For MicroLED Demura applications, metrological accuracy is critical—compensation algorithms need driving current adjustments calculated from accurate luminance and chromaticity values for each subpixel. If the input data is inaccurate, the post-compensation display might actually look worse.

5.3 Adaptability to High Dynamic Range

#

MicroLED panels during inspection may simultaneously contain regions of extremely high luminance (functioning chips) and extremely low luminance (dark states or faint defective chips). Imaging colorimeters, through multi-exposure HDR technology, can cover a dynamic range of 120-140 dB in a single measurement sequence, capturing both high and low light information. This is indispensable for simultaneously detecting dead pixels (no light) and identifying dim chips (needing Demura) in the same frame.

VI. Special Challenges of Pixel-Level Demura in MicroLED

#

6.1 Optical Crosstalk from Tiny Chip Pitches

#

MicroLED chip pitches can be as small as dozens of microns or less. At such tiny distances, light emitted by adjacent chips generates significant optical crosstalk in the imaging system—light from one chip “spills” into the sensor pixels corresponding to neighboring chips.

Optical crosstalk makes precise luminance extraction for individual chips difficult. Without crosstalk correction, pixel values read directly from the image will contain contributions from neighbors, resulting in overestimated luminance and artificially smoothed brightness differences between adjacent chips.

Countermeasures:

• Use higher-resolution sensors to increase the number of sensor pixels per chip, enabling better separation of chip-body and inter-chip signals.
• Employ Point Spread Function (PSF) deconvolution algorithms to mathematically eliminate optical crosstalk.
• Optimize lens selection, using high-quality lenses with high MTF at target spatial frequencies.

6.2 Complexity of Color-Mixing Correction

#

In RGB MicroLED displays, R, G, and B subpixels are tightly packed. When measuring with an imaging colorimeter, filter spectral transmittances are not ideal rectangular window functions—for example, the X filter responds to blue light as well as red light (since the CIE x(lambda) function has a second peak in the blue band).

This means that when measuring a red subpixel, light from adjacent blue subpixels may affect the red subpixel’s chromaticity measurement through both optical crosstalk and non-ideal filter response. This “color-mixing” effect is particularly pronounced given MicroLED’s tiny pitches.

Countermeasures:

• Sequential Color Measurement: Lighting up R, G, and B frames sequentially and capturing them separately to avoid inter-color interference. The cost is tripling the measurement time.
• Spectral Correction Algorithms: Using matrix operations to mathematically compensate for non-ideal filter responses, improving chromaticity accuracy for narrowband sources.

6.3 Conflict between Resolution and FOV

#

MicroLED panel sizes range from watch-sized (~1 inch) to large commercial displays (> 100 inches). For large panels, covering the entire area in one shot while ensuring each chip occupies sufficient sensor pixels requires extremely high sensor resolution.

For a 110-inch 4K MicroLED TV (~2440mm x 1373mm), if each subpixel requires at least 3 sensor pixels (horizontally), then 3840 x 3 x 3 = 34,560 horizontal sensor pixels are needed. Currently, the highest resolution commercial imaging colorimeter (151MP, ~14000 x 10800 pixels) still cannot meet this in a single shot.

Countermeasures:

• Tiled Capture and Stitching: Dividing the panel into regions, capturing each separately, and stitching via software. This is the most common solution but adds time and demands mechanical precision.

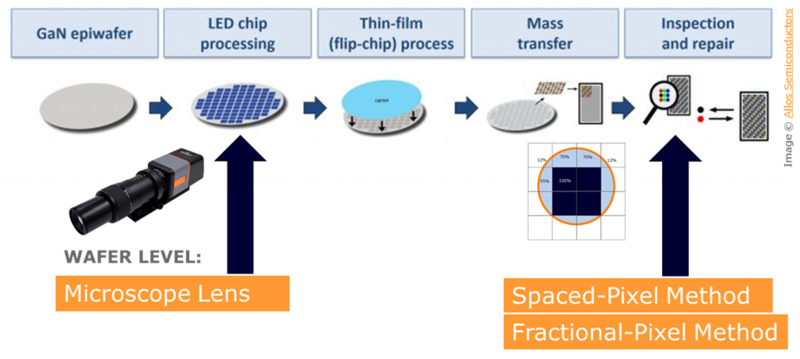

• Fractional Pixel Measurement: Using image processing algorithms to extract luminance and chromaticity for individual display pixels even when the sensor pixel count is less than the display pixel count. This requires precise pixel registration and high-quality interpolation.

VII. High-Throughput Inspection: Measuring Millions of Chips in Seconds

#

7.1 Speed Requirements Analysis

#

Production environments demand strict inspection speeds. If a MicroLED line has a Takt Time of 30 seconds/panel, the entire flow from capture and transmission to processing and results must be completed within those 30 seconds.

For a 29MP imaging colorimeter, single-frame RAW data is ~58MB (16-bit). If HDR measurement is needed (e.g., 5 exposures), data rises to ~290MB. Including three color channels (X, Y, Z), total data is ~870MB. This data must be transmitted, processed, and analyzed within seconds.

7.2 System-Level Speed Optimization

#

High-throughput MicroLED inspection systems require optimization at each stage:

Sensor Readout Speed: Employing high-speed CMOS sensors and high-bandwidth data interfaces (e.g., CoaXPress-12 or 10GigE) to maximize frame rates.

Parallel Processing Architecture: Leveraging GPU parallel computing to accelerate image processing, including HDR synthesis, flat-field correction, chromaticity calculation, and defect identification.

Algorithm Efficiency Optimization: Developing optimized image processing pipelines tailored for MicroLED inspection, reducing unnecessary computational steps.

Multi-Camera Parallelism: For large panels, deploying multiple imaging colorimeters to measure different regions simultaneously, reducing total time to a fraction of a single-device setup.

VIII. Spectral Characteristic Differences and Color Correction Strategies

#

8.1 Narrowband Emission Characteristics of MicroLEDs

#

MicroLED chips have narrowband emission spectra (FWHM typically 15-30 nm), and peak wavelengths can vary by several nanometers between chips. This poses unique challenges for color measurement with imaging colorimeters.

Traditional tristimulus filters are optimized for broadband sources (e.g., incandescent, white LED). Small filter transmittance deviations are “averaged out” under broadband light, having minimal impact. However, under narrowband light, any filter deviation is amplified because the light’s energy is concentrated in a very narrow band, potentially where the filter transmittance curve is steepest.

8.2 Spectral Correction Methods

#

To improve chromaticity accuracy for narrowband sources, several strategies can be employed:

Method 1: Spectral Model-Based Correction. If the typical emission spectrum shape of the MicroLED chip is known (e.g., Gaussian), pre-established correction matrices can adjust the actual filter response toward the theoretical CIE response. This requires pre-calibration for each color (R, G, B).

Method 2: Multi-Channel Enhanced Measurement. Adding extra narrowband or bandpass filter channels beyond the standard X, Y, Z channels to acquire richer spectral information. Data from these extra channels enables more precise estimation of chromaticity.

Method 3: Snapshot Hyperspectral Imaging. Using emerging snapshot hyperspectral technology to acquire complete spectral information for every pixel in a single shot. This fundamentally eliminates filter matching issues, but such systems currently have limitations in spatial resolution and cost.

8.3 Binning Strategies and Color Management

#

In MicroLED manufacturing, chips on epitaxial wafers are typically sorted by wavelength and luminance (Binning), grouping chips with similar performance into the same Bin. During panel assembly, chips from the same Bin are used in the same region to minimize local color differences.

However, binning precision directly affects final display quality. If a Bin’s wavelength range is too wide (e.g., +/-5 nm), chips within it may still exhibit visible chromaticity differences. Finer binning improves uniformity but reduces utilization of available chips and increases cost.

Imaging colorimeters play a role here: before binning, wafer-level comprehensive optical inspection accurately measures the wavelength and luminance of each chip, providing data support for sorting decisions.

IX. Technical Outlook

#

9.1 AI-Assisted Defect Classification

#

Traditional threshold- and rule-based defect classification faces limitations in MicroLED: defect types are diverse (dead pixels, weak pixels, displacement, flips, color deviations), and some features are very subtle compared to normal chips.

Deep learning offers solutions. Training Convolutional Neural Networks (CNNs) or advanced architectures (e.g., YOLO, U-Net) enables:

• Automated Multi-Class Defect Classification: Upgrading from binary “good/bad” judgments to multi-class identification, providing more precise information for repair decisions.
• Weak Defect Detection: CNNs can learn subtle patterns invisible to humans but impacting display quality, increasing defect detection rates.
• Adaptive Thresholds: Machine learning-based methods can automatically adjust detection thresholds based on different regions or batches, reducing false alarms.

According to a review of intelligent Mura systems published by IEEE, hybrid methods combining deep learning with human visual perception models (such as combining HPMI metrics with GAN architectures) have shown superior performance in OLED and MicroLED Mura detection.

9.2 Real-time Inline Compensation

#

Traditional Demura processes are offline: capture, process, calculate, then write. This can take dozens of seconds or even minutes.

The future direction is Real-time Inline Compensation—completing the entire flow from measurement to compensation data generation within the few seconds it takes a panel to move out of the inspection station:

• Processing while Capturing: Using pipelined processing architectures where sensor data is sent to the GPU as it is read out, starting calculations before acquisition is complete.
• Hardware-Accelerated Demura Algorithms: Hard-coding core compensation calculation algorithms into FPGAs or specialized ASICs for hardware-level processing speeds.
• Incremental Compensation: For repaired local regions, performing incremental measurement and compensation only for those areas to avoid full-panel re-measurement.

9.3 Multi-Modal Inspection Fusion

#

Future MicroLED inspection systems might integrate multiple modalities:

• Imaging Colorimeter + Spectrometer: Imaging colorimeters provide spatial distribution across the panel, while spectrometers provide precise spectral info for sample points; they complement each other.
• EL + PL Inspection: EL inspection occurs after bonding; PL inspection can occur at the wafer stage before bonding. Combining them achieves full-process coverage.
• Optical + Electrical Inspection: Combining optical “seeing” with electrical “measuring” to obtain a complete performance profile of the chips.

9.4 From Inspection to Prediction

#

With accumulated inspection data, manufacturers will be able to build predictive models from process parameters to final display quality. By analyzing correlations between epitaxial growth conditions, mass transfer parameters, and optical results, they can:

• Predict the yield level of a chip batch in advance.
• Optimize chip-panel matching strategies (e.g., combining chips with complementary wavelengths).
• Implement predictive maintenance—issuing warnings before equipment parameters drift outside normal ranges.

Conclusion

#

MicroLED technology is at a critical turning point from lab to factory. Optical inspection is not just a quality control tool but the core engine for yield improvement—without efficient, accurate inspection, mass production is not economically viable. Imaging colorimeters, balancing spatial resolution with photometric and chromatic accuracy, occupy an irreplaceable position in the MicroLED inspection chain.

However, challenges remain: shrinking pitches demand higher optical resolution, full inspection of tens of millions of chips pressures measurement speed, and narrowband spectral characteristics test chromaticity accuracy. Meeting these challenges requires coordinated progress in optical systems, image processing algorithms, and AI technology.

Optical inspection in MicroLED manufacturing is not just a technical issue but a systems engineering challenge. It requires close collaboration between equipment manufacturers, panel manufacturers, and algorithm developers to ultimately realize the large-scale commercialization of MicroLED display technology.

This article is part of the Imaging Colorimeter Technology Knowledge Base series.

Disclaimer: Technical parameters and industry data cited in this white paper are based on publicly available literature and industry reports and are for technical reference only.

FAQ

#

Q1: How strict are the yield requirements for MicroLED mass transfer?

#

Extremely strict. A 4K MicroLED panel requires approximately 24.88 million chips. Even at 99.9% transfer yield (1/1000 defect rate), a single panel would have about 24,880 defective chips. To control dead pixels to single digits per panel, yield must reach 99.9999% (1/1,000,000, known as 6N yield). The industry addresses this through a test-repair loop: pre-transfer screening, selective transfer, comprehensive post-transfer optical inspection, defect repair, and post-repair verification.

Q2: What advantages do imaging colorimeters have over traditional methods for MicroLED inspection?

#

Imaging colorimeters combine high-resolution area imaging with precise photometric and chromatic measurement, offering three key advantages: first, spatially parallel measurement efficiency—a 29MP sensor measures approximately 29 million spatial points in a single exposure; second, metrological traceability providing measurements in physical units (cd/m², CIE coordinates) that standard industrial cameras cannot; third, HDR technology achieving 120-140 dB dynamic range, enabling simultaneous detection of dead pixels and dim chips in the same frame.

Q3: What unique challenges does pixel-level Demura face in MicroLED?

#

Three main challenges exist: first, optical crosstalk—chip pitches as small as tens of microns cause light spillover between neighbors, requiring PSF deconvolution algorithms for correction; second, color-mixing effects—tightly packed RGB subpixels combined with non-ideal filter spectral response cause inter-color measurement interference, addressed through sequential color measurement or spectral correction algorithms; third, the resolution-vs-FOV conflict—large panels cannot achieve chip-level resolution in a single shot, requiring tiled capture and stitching.
