Lifecycle Management: Best Practices for Instrument Maintenance and Recalibration

Introduction: Precision is Not Eternal

#

The accuracy specifications of an imaging colorimeter at the time of delivery represent its performance level under ideal conditions after rigorous calibration. However, precision is not a static property—as time passes, environmental conditions change, and optical components naturally age, the measurement performance of the instrument will gradually deviate from its initial state. If this deviation is not detected and corrected in a timely manner, it will lead to inaccurate quality judgments on the production line, triggering overkill or escapes (missed detections).

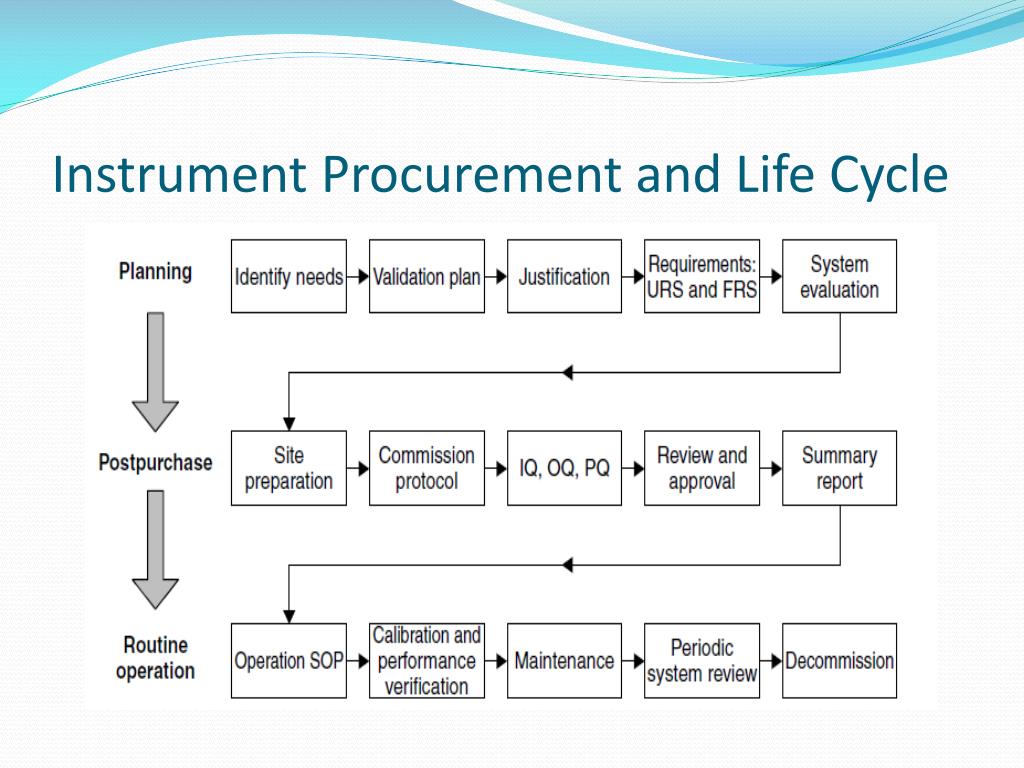

The core philosophy of full lifecycle management is: treat calibration and maintenance as a continuous investment in instrument precision, rather than an optional additional cost. This article will cover a complete guide to practices from daily maintenance, drift determination, and calibration verification to transport and storage, helping users maximize the service life and measurement credibility of their instruments.

I. Calibration System: Factory vs. Field Calibration

#

1.1 Factory Calibration

#

Factory calibration is a comprehensive calibration process executed by the instrument manufacturer in a controlled laboratory environment, typically performed before delivery and during periodic factory maintenance returns.

Factory calibration typically includes:

• Spectral Response Calibration: Calibrating and correcting the spectral response of filters using a standard spectroradiometer as a reference.
• Luminance Linearity Calibration: Verifying and correcting the linear relationship of luminance measurements across the full range.
• Spatial Uniformity Calibration (Flat-Field Correction): Eliminating response differences between sensor pixels and lens vignetting effects using a uniform light source from an integrating sphere.
• Dark Field Calibration: Capturing the dark current characteristics of the sensor under completely dark conditions to serve as a baseline for subtraction in subsequent measurements.
• Chromaticity Calibration: Verifying the accuracy of color coordinate measurements using multiple standard light sources with known spectra.

Recommended Factory Calibration Interval: 12-24 months. The specific cycle depends on usage intensity, environmental conditions, and the user’s quality management system requirements. High-intensity production line use (e.g., continuous operation >16 hours/day) suggests 12 months; intermittent lab use can extend to 24 months.

1.2 Field Calibration

#

Field calibration is a simplified calibration process executed by users in their own operating environments to maintain accuracy between factory calibrations.

Typical field calibration content:

• Dark Field Update: Re-capturing dark field images at current ambient temperatures to update the dark current subtraction baseline. Recommended frequency: once daily after startup or whenever ambient temperature changes by more than 2°C.
• Grayscale/Luminance Single-Point Verification: Measuring a known luminance value using a calibrated reference light source (e.g., a standard lightbox) to verify if readings are within allowable tolerances.
• Chromaticity Single-Point Verification: Verifying chromaticity measurement accuracy using reference sources with known color coordinates.

Limitations of Field Calibration: Field calibration cannot replace factory calibration. Ambient temperature fluctuations, the accuracy grade of reference sources, and operator skill levels all limit the precision ceiling of field calibration. Its essence is “verification and fine-tuning” rather than “reconstruction.”

1.3 Determining Calibration Intervals

#

Calibration intervals are not fixed and should be dynamically adjusted based on actual drift monitoring data:

Initial Cycle Setting: Set an initial interval according to manufacturer recommendations or industry practice (usually 12 months).

Basis for Adjustment: If consecutive verification results show drift far smaller than allowable tolerances, the interval can be appropriately extended; conversely, if drift approaches or exceeds tolerances, the interval should be shortened.

Critical Event Triggers: The following events should trigger unscheduled calibration:

• Collisions, drops, or abnormal vibrations.
• Exposure to temperature or humidity conditions outside specified ranges.
• Replacement of critical optical components (lenses, filters, etc.).
• Major software/firmware version upgrades.

II. Daily Maintenance Checklist

#

2.1 Lens Cleaning

#

The front surface of the lens is the most exposed optical component and most susceptible to contamination. Dust, fingerprints, and oil mist can alter transmittance, leading to low luminance readings and degraded spatial uniformity.

Cleaning Frequency: Inspect weekly; clean immediately upon discovering contamination. Daily inspection is recommended for production environments (especially outside cleanrooms).

Cleaning Steps:

1. Use an air blower to remove loose dust—do not wipe directly to avoid scratching coatings with particles.
2. Use specialized lens paper or microfiber cloth with a small amount of anhydrous ethanol or specialized lens cleaner, wiping gently in a spiral motion from center to edge.
3. Check cleanliness and repeat step 2 if necessary.

Precautions:

• Do not use canned compressed air—it may release refrigerant residues that form a film on the lens.
• Do not use household cleaners, alcohol prep pads, or paper towels—these can leave fibers or chemical residues.
• Turn off instrument power during cleaning to avoid static attraction of new dust.

2.2 Sensor Status Check

#

Sensors are typically sealed inside and do not require direct contact. Monitor health through indirect means:

Dark Field Image Inspection: Monthly, capture a dark field image under completely light-shielded conditions (lens capped, all ambient lights off) to check for:

• Hot Pixels: Pixels consistently displaying as bright spots in the dark field; an increase in count indicates sensor aging.
• Abnormal Dark Current Distribution: Obvious regional luminance differences in the dark field may indicate cooling system failure.
• Streaks or Patterns: Regular patterns in the dark field may indicate electronic interference or readout circuit issues.

Dark Current Level Trends: Record mean dark current values and standard deviations during each dark field calibration to build a trend chart. A continuous upward trend (after correcting for temperature) may indicate sensor degradation.

2.3 Filter Inspection

#

Tristimulus filters are core elements determining chromaticity accuracy. Performance may degrade due to:

• Aging and Discoloration: Some organic filters may undergo spectral transmittance changes under long-term UV or high-temperature exposure.
• Delamination: Multi-layer interference filters may suffer interlayer separation under temperature/humidity cycling.
• Contamination: Condensation or organic vapors may form films on filter surfaces.

Inspection Method: Periodically (every 6 months) perform chromaticity verification using standard light sources with known spectral characteristics. If deviations exceed nominal accuracy and cannot be corrected by field calibration, factory maintenance or filter replacement may be necessary.

2.4 Cooling System Check

#

For instruments with Thermoelectric Cooling (TEC):

Cooling Stability Verification: Record the time needed for the sensor temperature to stabilize after startup and the stable temperature value. Significant extension of stabilization time or an increase in stable temperature may indicate TEC degradation or heat sink clogging.

Heat Sink Cleaning: If fan-cooled, periodically remove dust from fans and fins. Reduced heat dissipation efficiency directly impacts cooling performance and sensor dark current levels.

III. How to Judge if an Instrument has Drifted

#

3.1 Definition of Drift

#

Measurement drift refers to the phenomenon where an instrument’s output slowly deviates from its calibrated value over long periods. Drift is gradual and unidirectional (or slowly oscillating), distinct from the rapid fluctuations of random noise. Its presence means readings change over time even if the object being measured does not.

3.2 Drift Monitoring Methods

#

Method 1: Periodic Measurement of Standard References

The most direct and reliable method. Process:

1. Choose a stable reference—this could be a stable standard light source (e.g., an aged LED lightbox) or a stable reflectance standard (e.g., a barium sulfate-coated white board used with a stable source).
2. After initial calibration, measure the reference under fixed conditions (exposure, aperture, distance, etc.) and record luminance and color coordinates as benchmarks.
3. Repeat measurements at fixed intervals (weekly or monthly) under identical conditions.
4. Plot results on a trend chart to observe for systematic shifts.

Method 2: Statistical Analysis of Production Data

If used on a production line, use production data for indirect monitoring:

• Monitor inter-batch statistics for mean luminance and color coordinates. Constant trends in measurement statistics despite stable line processes may indicate instrument drift.
• Use Statistical Process Control (SPC) charts with control limits; trigger verification if values exceed these limits.

3.3 Criteria for Determining Drift

#

Drift determination should be based on quantitative criteria:

Warning Threshold: Reaching 50% of the instrument’s nominal accuracy. For example, if nominal luminance accuracy is +/-3%, a +/-1.5% deviation in reference measurement triggers a warning to increase monitoring frequency.

Action Threshold: Reaching 80% of nominal accuracy. For example, a +/-2.4% luminance deviation triggers action, requiring field or factory calibration.

IV. Common Causes of Drift

#

4.1 Filter Aging

#

Tristimulus filters are the most prone to aging. In organic dye-type filters, UV and high heat cause photochemical decomposition of dye molecules, gradually altering spectral transmittance curves. This directly manifests as drift in color coordinate measurements.

Multi-layer coated filters are typically more stable but can still suffer interlayer stress changes or moisture penetration under extreme conditions, leading to spectral shifts.

4.2 Sensor Degradation

#

CMOS and CCD sensors undergo degradation over long-term use:

• Hot Pixel Growth: Lattice defects increase under thermal activation, showing up as more bright spots in dark fields.
• Quantum Efficiency Decline: Material aging in photosensitive regions slowly reduces photoelectric conversion efficiency.
• Dark Current Increase: Overall dark current levels rise slowly over time.

These processes are typically very slow (years) and generally aren’t major issues within the design life, but warrant attention in high-intensity scenarios.

4.3 Optical Lens Contamination

#

Gradual contamination of the lens surface is a very common cause of drift. Particles, oil mist, and organic vapors in factory environments deposit on the front lens surface, reducing light throughput. This decline is gradual and often unnoticed in daily use but shows up as systematically low luminance values during periodic verification.

4.4 Mechanical Displacement

#

Internal optical components (filter wheels, shutters, etc.) may undergo slight shifts under long-term vibration or temperature cycling. Vibration in factory environments is particularly concerning; mechanical isolation measures at installation are vital for maintaining long-term precision.

4.5 Electronic Drift

#

Parameters like ADC reference voltage sources and pre-amplifier gains may drift with temperature and time. High-quality instruments use temperature compensation circuits, but long-term aging is unavoidable.

V. Calibration Verification Methods

#

5.1 Quick Verification with Standard Lightboxes

#

Standard lightboxes are the most common tool for field verification. A qualified lightbox should have:

• Luminance Uniformity: Non-uniformity <= +/-2% within the active area.
• Luminance Stability: Drift <= 0.5% over short durations (30 min) after stabilization.
• Traceable Calibration: Luminance and color coordinates calibrated by a qualified lab with certificates and uncertainty statements.
• Periodic Re-calibration: Certificates have expiration dates (usually 12 months).

Verification Flow:

1. Prehead lightbox until stable (typically 15-30 minutes).
2. Aim the imaging colorimeter at the center of the lightbox output surface using the standard lens and distance.
3. Measure and record luminance and color coordinates.
4. Compare with calibrated values and calculate deviations.
5. Passing if within nominal accuracy; otherwise, further action is required.

5.2 Verification with Standard Reflectance Plates

#

For non-self-luminescent applications (e.g., reflectance measurement), use calibrated reflectance plates (e.g., grayscale cards or whiteboards). These offer high stability and portability, unaffected by power fluctuations.

5.3 Cross-Comparison Verification

#

In environments with multiple identical instruments, use cross-comparison to find individual drift:

• Measure the same standard source with all instruments under identical conditions.
• Compare results; systematic deviations in one unit compared to others suggest drift in that unit.

VI. Precautions for Instrument Transport and Storage

#

6.1 Transport Protection

#

Precision optical systems are highly sensitive to shock and vibration. Improper protection during transport can cause component displacement, lens damage, or sensor injury.

Transport Requirements:

• Use Original Cases: Manufacturer-provided cases are drop-tested and have custom cushioning. Use equivalent protection if originals are missing.
• Detach Lenses: Remove and pack lenses separately for long-distance transport. Transporting with lenses mounted increases stress risks on mounts and interfaces.
• Install Protection Caps: Dust caps on both mounts and lens ends are essential.
• Moisture Prevention: Use desiccants in cases, especially when crossing climate zones.
• Temperature Control: Avoid extreme temperatures. If unavoidable, allow instruments to slowly reach ambient temperature before powering on at the destination to prevent condensation on lenses and filters.

6.2 Storage Conditions

#

For long-term storage:

• Temperature: 15-30°C, avoiding sharp fluctuations.
• Humidity: 30%-60% RH. High humidity causes mold or coating degradation; low humidity can dry out rubber seals.
• Dust Protection: Keep environments clean and store instruments in sealed cases or cabinets.
• Light Shielding: Avoid direct sunlight or strong UV to prevent accelerated filter aging.
• Periodic Power-on: Power up stored instruments every 3-6 months to exercise cooling systems and mechanical parts (like filter wheels), preventing mechanical seizure.

6.3 Post-Transport Acceptance

#

Perform these steps upon arrival before official use:

1. Visual Inspection: Check the case and instrument for damage or impact marks.
2. Self-Test: Complete the startup self-test according to the manual.
3. Dark Field Verification: Capture a dark field image and compare it with pre-transport records.
4. Functional Verification: Perform quick luminance/chromaticity verification with a standard source to ensure consistency with pre-transport records (within nominal repeatability).
5. Archiving: Document acceptance results in the instrument history file.

VII. Software Version Management and Data Compatibility

#

7.1 Software Version Management

#

Measurement software (e.g., TrueTest, LabSoft) is a vital part of the system. Updates may involve algorithm changes, calibration parameter format shifts, or workflow optimizations.

Management Advice:

• Record Current Version: Document the version number in the history file.
• Pre-Update Evaluation: Review release notes before updating to see if algorithms or calibration parameters are affected. If so, re-verify calibration after updating.
• Rollback Readiness: Keep installation media or backups of previous versions.
• Line Consistency: If multiple instruments are on the same line, use identical software versions for data consistency and comparability.

7.2 Data Compatibility

#

Long-term data availability is a quality management requirement. Pay attention to:

Format Compatibility: Ensure new versions can read older data files and vice-versa.

Calibration Parameter Compatibility: Confirm if existing calibration parameters remain valid or if recalibration is needed after software updates.

Standardized Export: Periodically export key data in universal formats (CSV, TIFF) to ensure long-term readability independent of proprietary formats.

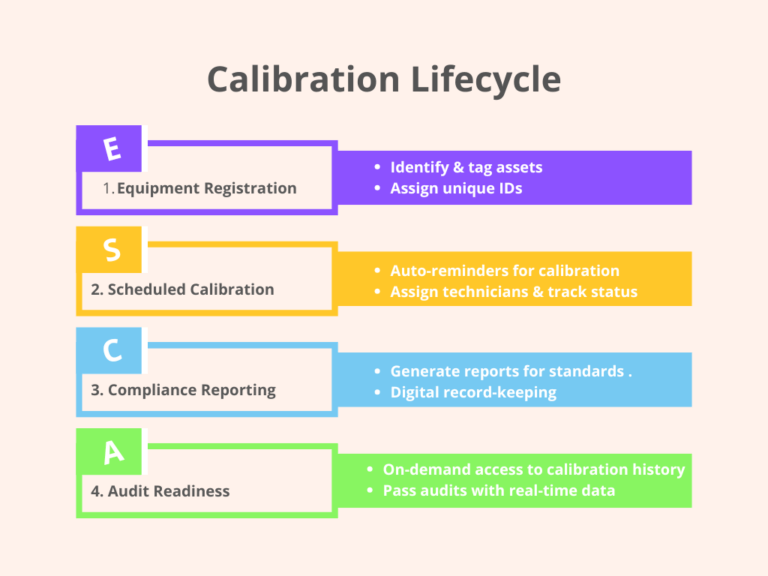

VIII. Maintenance Records and History Management

#

Every imaging colorimeter should have a complete maintenance history file documenting:

• Serial number, model, and purchase date.
• All factory calibration records (with certificates and uncertainty statements).
• Field verification records (date, operator, reference, results, deviations).
• Drift monitoring trend data.
• Repair and replacement records.
• Software version changes.
• Transport and relocation logs.
• Unusual event records (impacts, temperature excursions, etc.).

These records are the basis for tracing data credibility, optimizing calibration intervals, predicting maintenance needs, and assessing residual life. In systems like ISO 17025, complete history records are a prerequisite for lab accreditation.

Conclusion

#

The precision of an imaging colorimeter is a dynamic state requiring continuous maintenance, not a static attribute. Establishing systematic calibration and maintenance workflows is a fundamental safeguard for data credibility, not just an operational burden. A well-maintained instrument provides reliable results throughout its life; a neglected one will see its data credibility decay rapidly—often with the user being the last to know.

FAQ

#

Q1: How often should an imaging colorimeter be calibrated?

#

Factory calibration is recommended every 12-24 months, depending on usage intensity and environmental conditions. High-intensity production use (over 16 hours/day) suggests 12 months; intermittent lab use can extend to 24 months. Intervals should be dynamically adjusted based on drift monitoring data—extend if drift is well within tolerance, shorten if approaching limits. Events like collisions, extreme temperature/humidity exposure, or optical component replacement should trigger unscheduled calibration.

Q2: How can I tell if an instrument has drifted?

#

The most reliable method is periodically measuring a stable standard reference (such as a calibrated lightbox) under fixed conditions and plotting results on a trend chart to observe systematic shifts. Two threshold levels are recommended: a warning threshold at 50% of nominal accuracy (e.g., +/-1.5% if accuracy is +/-3%) to increase monitoring frequency, and an action threshold at 80% (e.g., +/-2.4%) requiring field or factory calibration. Production line SPC data analysis can also provide indirect drift monitoring.

Q3: What precautions should be taken when transporting the instrument?

#

Use the original shipping case, detach and separately pack the lens, install dust protection caps, and include desiccants for moisture prevention. Avoid extreme temperatures during transit. Upon arrival, allow the instrument to slowly reach ambient temperature before powering on to prevent condensation on lenses and filters. Post-transport acceptance should include visual inspection, self-test, dark field verification, and functional verification with a standard light source, with all results documented in the instrument history file.
