Introduction: Selection as an Optimal Solution under Constraints
#

An Imaging Colorimeter is not a “one-size-fits-all” tool. Different measurement scenarios pose completely different requirements for the core parameters of the instrument: smartphone screen inspection requires high spatial resolution to resolve individual sub-pixels; large-size TV panel inspection requires a wide field of view (FOV) to cover the entire panel; MicroLED inspection requires extreme dynamic range to handle the luminance differences of self-luminescent chips; and HUD or AR/VR testing requires special optical configurations to simulate human viewing conditions.

The core task of selection is to find the optimal balance between resolution, speed, sensitivity, dynamic range, and cost for your specific application. Over-specification leads to unnecessary cost waste, while under-specification results in measurement data that fails to meet quality standards—both are failures in engineering decision-making.

This article systematically combs through the core parameter dimensions of imaging colorimeter selection and provides configuration recommendations for typical application scenarios, offering an actionable methodology for engineers and procurement decision-makers.

I. Analysis of Core Parameter Dimensions
#

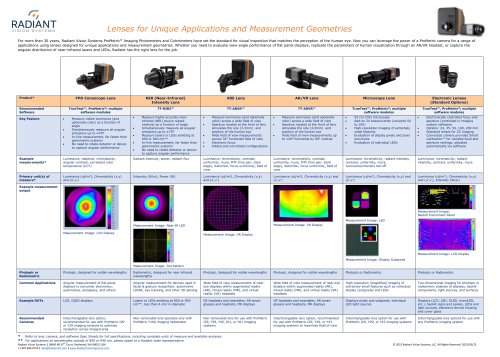

Lens selection guide for ProMetric I series imaging colorimeters—Different focal lengths for various FOV and resolution needs (Image Source: Radiant Vision Systems / DirectIndustry)
图片来源于网络,如有侵权,请联系删除

1.1 Spatial Resolution: More Pixels are Not Always Better
#

The spatial resolution of an imaging colorimeter is determined by the effective pixel count of its sensor, with common market configurations ranging from approximately 2 megapixels (2MP) to 151 megapixels (151MP). Pixel count directly determines the smallest spatial feature size distinguishable at a given FOV.

Key Concept: Sensor pixels per measured pixel (DUT pixel). This ratio determines spatial measurement accuracy. In display panel Demura applications, it is typically required that at least 3-5 sensor pixels cover one display pixel to accurately extract its luminance and chromaticity. Higher sensor pixel densities (e.g., 8-10 sensor pixels per display pixel) provide more reliable sub-pixel level measurements.

However, higher pixel counts also mean larger data volumes, longer readout times, and higher costs. A 61MP imaging colorimeter generates over 30 times more data per frame than a 2MP device, placing significantly higher demands on data transmission bandwidth, storage capacity, and processing speed.

1.2 Dynamic Range: Key to Measurable Luminance Span
#

Dynamic Range defines the ratio between the highest and lowest luminance an instrument can distinguish in single or multiple exposures. Single-exposure dynamic range is usually determined by sensor bit depth and dark current noise, typically ranging from 59-76 dB. Through multi-exposure High Dynamic Range (HDR) synthesis, system dynamic range can be extended to 120-140 dB.

Dynamic range is critical in:

  • OLED/MicroLED Black State Measurement: Self-luminescent displays may have residual emission even when pixels are “off,” requiring measurement at extremely low luminance.
  • Contrast Measurement: Scenarios where high-brightness and dark areas coexist in the same frame.
  • Automotive Ambient Lighting: Weak emission in dark environments requires high sensitivity, yet high-brightness modes must not saturate.

1.3 Spectral Matching Accuracy: Engineering Significance of f1’ Values
#

Imaging colorimeters simulate the CIE standard observer’s tristimulus functions x(λ), y(λ), and z(λ) using filters. The deviation between the actual spectral transmittance of the filters and the theoretical curves is quantified by the f1’ value (Spectral Mismatch Index); a smaller f1’ indicates more accurate matching.

Typical industrial-grade imaging colorimeters have f1’ values for V(λ) between 1.5% and 5%. For broadband light sources (e.g., white LEDs), f1’ in the 3%-5% range is usually acceptable. However, for narrowband sources (e.g., monochromatic LEDs, RGB sub-pixels of OLEDs), a large f1’ leads to significant chromaticity measurement errors.

Practical Impact: An instrument with f1’=5% measuring a narrowband red LED might exhibit a color coordinate deviation of Δx,y ≈ 0.01, which is unacceptable in high-end display inspection. In such cases, filters with lower f1’ (e.g., f1’ ≤ 2%) or spectral correction algorithms are required.

1.4 Measurement Speed: The Hard Constraint of Takt Time
#

In production line environments, measurement speed directly impacts Takt Time. Speed is determined by:

  • Exposure Time: Low-luminance measurements require longer exposures; for example, measuring black states at the 0.1 cd/m² level may take several seconds.
  • Multi-frame Synthesis: HDR mode requires capturing and synthesizing multiple images at different exposures, each extra frame extending the total time.
  • Data Readout and Transmission: High-pixel sensors take longer to read out; for instance, readout for 61MP is significantly longer than for 2MP.
  • Image Processing: Applications like Demura require extensive calculations after capture.

Typical production line requirements demand a complete measurement (exposure, readout, transmission, and basic processing) within 3-15 seconds. Selection must confirm that the configuration can complete all required tasks within the target Takt Time.

1.5 Sensor Cooling: Dark Current Suppression and Lower Detection Limit
#

Sensors generate Dark Current during operation—thermally generated charges accumulate in pixels even without light. Dark current magnitudes are exponentially related to sensor temperature: every 6-8°C decrease approximately halves the dark current.

For applications requiring measurement of low-luminance targets (e.g., OLED black states, display light leakage), sensor cooling is indispensable. Typical solutions include:

  • Passive Cooling (No Active Cooling): Suitable for high-luminance scenarios; simple and low-cost.
  • Single-stage Thermoelectric Cooling (TEC): Lowers sensor temperature by ~15-25°C below ambient; suitable for most production line applications.
  • Multi-stage Thermoelectric Cooling: Lowers temperature to -20°C to -40°C or lower; suitable for scientific-grade extremely low-luminance measurement.

Cooling adds size, weight, power consumption, and cost, and requires a startup time (typically 1-5 minutes) to stabilize. Decision on cooling should be based on the required lower luminance limit.

II. Application Scenarios and Configuration Decision Matrix
#

Product appearance of ProMetric I series imaging colorimeter—Industrial-grade design for both production line and laboratory needs (Image Source: Radiant Vision Systems / Photonics)
图片来源于网络,如有侵权,请联系删除

2.1 Smartphone Screen Inspection
#

Core Needs: High resolution, moderate speed.

Typical smartphone resolutions range from 1080x2400 (FHD+) to 1440x3200 (QHD+), with millions of sub-pixels. Achieving pixel-level Demura and defect detection requires high imaging resolution.

Recommended Configuration:

  • Sensor Pixels: 12-29MP. A 12MP sensor (e.g., 4104x3008) provides ~3-5 sensor pixels per display pixel for FHD+ screens; 29MP is more generous for QHD+.
  • Lens: 50mm or 35mm standard lens, matching typical screen sizes (5.5-6.8") at working distances of ~300-500mm.
  • Dynamic Range: >= 60 dB single frame, up to 120 dB with HDR.
  • Cooling: Single-stage TEC is usually sufficient.
  • Takt Time: 3-8 seconds per station, moderate speed.

2.2 Large-Size TV Panel Inspection
#

Core Needs: Wide FOV, moderate resolution.

TV panels range from 43 to 85 inches or more, requiring the imaging colorimeter to cover the whole panel at reasonable distances. Requirements for spatial resolution are relatively low for panel-level uniformity (e.g., 9-point/13-point), but higher if Mura detection is also needed.

Recommended Configuration:

  • Sensor Pixels: 8-16MP. 8MP suffices for uniformity; 16MP is safer for Mura detection.
  • Lens: Wide-angle lens (e.g., 24mm or shorter focal length) or standard lens at greater distances. Fisheye lenses can cover ultra-large panels in a single shot but require software distortion correction.
  • Dynamic Range: Moderate for LCD (60 dB); HDR capability for OLED TV.
  • Cooling: Not usually required for LCD; TEC cooling recommended for OLED TV black-state measurement.
  • Special Requirements: May require mechanical rail systems for tiled capture and stitching.

2.3 Mini/MicroLED Inspection
#

Core Needs: Extremely high resolution, high dynamic range.

MicroLED display chips are in the 5-50 micron range with tiny pitches. Measuring chip-level luminance and chromaticity demands the highest spatial resolution. High dynamic range is also essential due to potentially vast brightness differences between good and defective chips.

Recommended Configuration:

  • Sensor Pixels: Above 29MP, with 61MP being ideal. High pixel density ensures enough sensor pixels per MicroLED chip.
  • Lens: Microscope or macro lens paired with short working distances for high magnification.
  • Dynamic Range: >= 120 dB in HDR mode to detect both bright and dead dots.
  • Spectral Match: Narrowband MicroLED emission demands low f1’ (<= 3%) or spectral correction capability.
  • Cooling: Multi-stage TEC to ensure SNR for dark-state measurements.
  • Speed: Must measure millions of chips within seconds—placing extreme demands on readout and processing.

2.4 HUD/AR/VR Testing
#

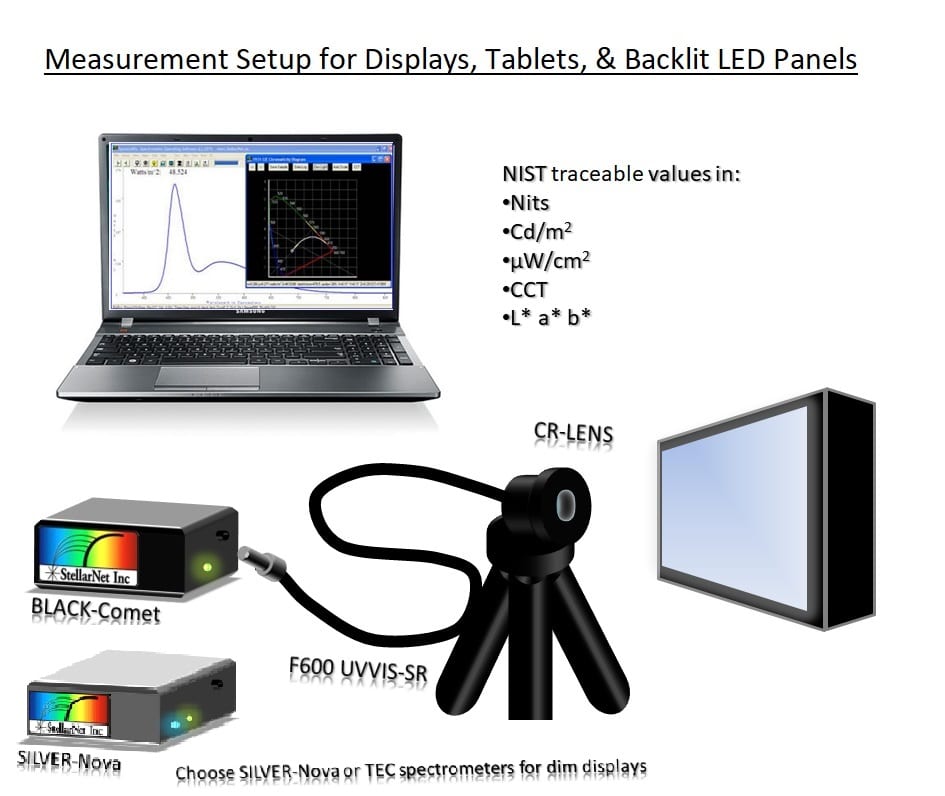

Schematic of display measurement system configuration—Standard layout for spectroradiometer and display (Image Source: StellarNet)
图片来源于网络,如有侵权,请联系删除

Core Needs: Specialized lenses, conoscopic configurations.

Head-Up Display (HUD) and Near-Eye Display (AR/VR) testing differs fundamentally from flat-panel display inspection. These devices generate virtual images, so the measurement system must simulate human optical characteristics.

Recommended Configuration:

  • Sensor Pixels: 12-29MP, depending on equivalent pixel density of the virtual image.
  • Lens: Conoscopic Lens is a key configuration—it captures light from various angles at a fixed position, simulating a human observing a HUD virtual image within an Eyebox. Standard lenses cannot perform this.
  • Viewing Angle Range: AR/VR FOV can exceed 100°, requiring ultra-wide-angle or fisheye front-end optics.
  • Dynamic Range: Moderate (HUD luminance is typically hundreds to thousands of cd/m²).
  • Special Requirements: The physical Entrance Pupil position and size must match the human pupil, requiring high mounting precision.

2.5 Automotive Ambient Lighting Inspection
#

Core Needs: Wide dynamic range, wide color gamut.

Optical inspection of automotive ambient lighting faces unique challenges: large luminance spans (from dark dimming to bright daylight modes), numerous colors (white, warm white, RGB, gradients), and complex emitting shapes (strips, planes, points).

Recommended Configuration:

  • Sensor Pixels: 5-12MP; spatial resolution needs are relatively low.
  • Lens: 35-50mm standard lens, depending on distance and fixture size.
  • Dynamic Range: >= 120 dB in HDR mode to cover all dimming levels.
  • Spectral Match: f1’ <= 3% is required due to narrowband RGB LED emission.
  • Cooling: Single-stage TEC for precision in dark modes.
  • Special Requirements: Darkroom measurement; software support for luminance/chromaticity analysis of irregular areas.

III. Summary of Decision Matrix
#

The following table summarizes the demand levels for core parameters across application scenarios:

Parameter DimensionPhone ScreenTV PanelMini/MicroLEDHUD/AR/VRAmbient Lighting
Pixel Count12-29MP8-16MP29-61MP+12-29MP5-12MP
Dynamic RangeMed-HighMed (LCD) / High (OLED)Extremely HighMedHigh
Spectral Match f1'<= 5%<= 5%<= 3%<= 5%<= 3%
Measurement SpeedMedLow-MedHighLowMed
CoolingSingle TECCase-by-caseMulti TECNot usuallySingle TEC
Special LensesStandardWide-angleMacro/MicroscopeConoscopicStandard

IV. Guidance for Selecting Pixel Versions
#

4.1 Applicable Ranges for Pixel Grades
#

Sensor configurations in the imaging colorimeter market can be categorized into several grades:

2MP Grade (~2 million pixels): Entry-level configuration suitable for basic luminance uniformity in R&D labs and light distribution measurement for lighting products. Lowest cost, smallest data, fastest processing.

8-12MP Grade (~8-12 million pixels): Mainstream production line configuration. 12MP is the most widely used grade, satisfying pixel-level Demura for FHD+ phone screens and most lighting/automotive applications. Best price-performance ratio.

29-31MP Grade (~29-31 million pixels): High-end production line configuration. Targets QHD+ phone screens, partitioned MiniLED backlight inspection, and Mura detection requiring higher spatial precision. Data volume and time increase ~2.5x over 12MP.

48-61MP Grade (~48-61 million pixels): Professional grade configuration. For MicroLED chip-level inspection, sub-pixel measurement of ultra-high-res displays, and scenarios with extreme spatial resolution demands. Processing and transmission are major bottlenecks.

100MP+ (e.g., 151MP): Scientific grade configuration. Used for cutting-edge MicroLED R&D and ultra-high-precision optical measurement. Requires high-speed interfaces like CoaXPress or 10GigE for reasonable speeds.

4.2 Selection Principles
#

Principle 1: Back-calculate pixel count from application needs. Determine the smallest spatial feature (e.g., display pixel pitch) and FOV range, then calculate the minimum sensor pixels required for accuracy.

Principle 2: Reserve moderate margin but avoid over-specification. Reserving 20%-50% pixel margin for future product upgrades is recommended, but blind pursuit of the highest count is not.

Principle 3: Consider system-wide speed matching. Higher pixel counts require higher bandwidth interfaces, larger storage, and stronger processing—without these, pixel increases won’t translate to actual efficiency gains.

V. Lens Selection: A Critical and Often Overlooked Link#

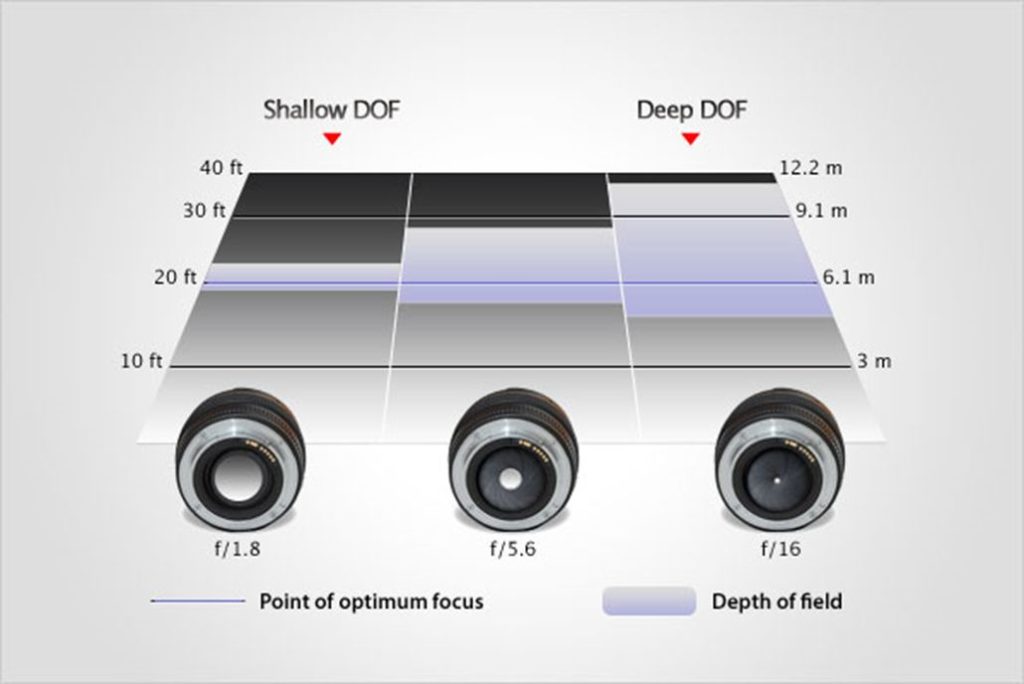

Effect of lens aperture (F-number) on depth of field—large aperture for shallow DOF, small for deep (Image Source: Scientific Imaging)
图片来源于网络,如有侵权,请联系删除

5.1 Matching Focal Length and FOV
#

Focal length determines the FOV at a given distance. Ensure the FOV fully covers the DUT:

  • Short Focal Length (e.g., 24mm): Wide FOV, suitable for large panels or close-range large-area coverage.
  • Medium Focal Length (e.g., 35-50mm): Most versatile, suitable for phone screens and small/medium lighting products.
  • Long Focal Length (e.g., 75-105mm): Narrow FOV but high magnification, suitable for long-distance or small-area precision measurement.

5.2 Aperture and Light Throughput
#

Lens aperture (F-number) affects throughput and depth of field (DOF):

  • Large Aperture (e.g., F/1.4-F/2.8): High throughput, good for low-luminance measurement, but shallow DOF.
  • Small Aperture (e.g., F/8-F/16): Deep DOF, good for large-area flat measurements, but requires longer exposures.

In production environments, aperture selection balances throughput (affecting exposure time) and DOF (affecting edge sharpness).

5.3 Special Lens Types
#

ProMetric I-SC integrated imaging colorimeter and spectrometer—High-end configuration combining both devices (Image Source: Radiant Vision Systems / Azom)
图片来源于网络,如有侵权,请联系删除
  • Conoscopic Lens: For HUD and near-eye display, capturing light from various angles at a fixed point.
  • Microscope Lens: For high-magnification measurement of MicroLEDs and other tiny structures.
  • Telecentric Lens: Eliminates perspective error, maintaining constant imaging scales for objects at different distances; suitable for precision dimensional measurement.
  • Fisheye Lens: Ultra-wide FOV (up to 180°) for single-shot coverage of massive panels or full-angle lighting distribution.

VI. Recommended Selection Process#

Cover of imaging colorimeter selection whitepaper—Systematic methodology helping engineers make optimal decisions (Image Source: Konica Minolta Sensing)
图片来源于网络,如有侵权,请联系删除

Based on the analysis, use this flow for selection:

Step 1: Define Measurement Tasks. Identify DUT type, parameters (luminance/chromaticity/uniformity/defects), accuracy requirements, and judgment criteria.

Step 2: Determine Spatial Resolution Needs. Based on the DUT’s smallest feature size and FOV, calculate the minimum sensor pixels needed.

Step 3: Determine Dynamic Range and Sensitivity Needs. Based on luminance range and lower detection limit, determine dynamic range grade and cooling scheme.

Step 4: Determine Spectral Match Needs. Based on light source characteristics, determine f1’ requirements. Narrowband sources need lower f1'.

Step 5: Determine Speed Needs. Based on Takt Time, back-calculate maximum acceptable measurement duration and evaluate if pixels, bandwidth, and processing match.

Step 6: Select Lens and Optical Accessories. Choose lens type and focal length based on working distance, FOV, and special measurement needs.

Step 7: Comprehensive Evaluation and Cost Optimization. Select the configuration with the best Total Cost of Ownership (TCO), including procurement, integration, maintenance, and upgrade costs, provided all technical needs are met.

Conclusion
#

Imaging colorimeter selection is an optimization problem under multi-dimensional constraints. There is no “best” configuration, only the “most suitable” one. Engineers must resist the impulse for over-specification and return to the application needs—what is the DUT, what needs measuring, what accuracy and speed are required, and what is the budget. Find the optimal solution at the intersection of these constraints.

FAQ
#

Q1: Are more pixels always better for an imaging colorimeter?
#

Not necessarily. Higher pixel counts mean larger data volumes, longer readout times, and higher costs—a 61MP device generates over 30x more data per frame than a 2MP unit. Selection should work backwards from application needs: calculate the minimum pixel count based on the DUT’s spatial features and FOV, then reserve 20%-50% margin. System-wide speed matching is also critical—without adequate interface bandwidth and processing power, pixel increases won’t translate into actual efficiency gains.

Q2: What is the practical impact of the f1’ value on measurement results?
#

The f1’ value quantifies the deviation between the filter’s spectral response and the CIE theoretical curves; lower values mean better matching. For broadband sources like white LEDs, f1’ of 3%-5% is usually acceptable. However, for narrowband sources like monochromatic LEDs or OLED subpixels, an instrument with f1’=5% measuring a narrowband red LED may exhibit color coordinate deviations of Δx,y≈0.01—unacceptable in high-end display inspection. Filters with f1’≤2% or spectral correction algorithms are then required.

Q3: Why do HUD and AR/VR testing require specialized lenses?
#

HUD and AR/VR devices generate virtual images rather than physical display surfaces, so the measurement system must simulate human eye optical characteristics. The key configuration is a conoscopic lens, which captures light from various angles at a fixed position, simulating how a human eye observes a HUD virtual image within the eyebox. Standard lenses cannot perform this measurement. AR/VR devices with FOV exceeding 100 degrees also require ultra-wide-angle or fisheye front-end optics.


This article is part of the Imaging Colorimeter Technology Knowledge Base series.
