Controlling the Environment: The Impact of Stray Light on Measurement Integrity

The measurement precision of an imaging colorimeter depends not only on the device’s performance but also heavily on the measurement environment. Stray light is the primary environmental factor affecting measurement integrity. Starting from the impact mechanism of stray light, this article will systematically introduce engineering practices for darkroom design, light shield construction, and selection of absorbing materials, and discuss the impact of ambient light on low-luminance and Ambient Contrast Ratio (ACR) measurements.

I. Mechanism of Stray Light’s Impact on Measurement Precision

#

1.1 What is Stray Light?

#

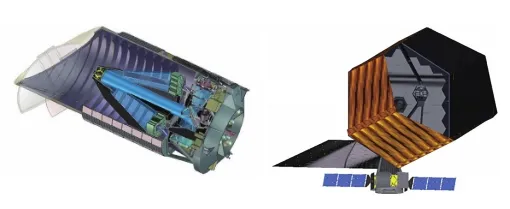

In the context of imaging colorimeter measurement, stray light refers to any undesired light reaching the sensor other than the light emitted or reflected by the Device Under Test (DUT) along the intended optical path. Sources of stray light include:

• Ambient Light: Indoor lighting, natural light through windows, equipment indicators, etc.
• Scattered Light from the DUT: Light from the display reflected by surrounding objects back into the lens.
• Internal Lens Scattering: Light reflecting or diffracting off lens surfaces, forming unintended spots on the sensor (lens flare).
• Reflective Surfaces: Reflections from the measurement table, fixtures, camera housing, etc.

1.2 How Stray Light Affects Measurement Results

#

The core impact of stray light is raising the luminance of dark areas in the image, thereby compressing the measurement’s dynamic range. Specific manifestations include:

Impact on Luminance Measurement:

• When measuring a full black frame, the sensor receives not only the black-level emission of the screen (ideally near zero) but also contributions from stray light. This results in measured black-state luminance being too high.
• When measuring a full white frame, the contribution of stray light is “submerged” by high-luminance signals, making the relative impact smaller.
• The end result is a severely underestimated Contrast Ratio (White Luminance / Black Luminance).

Impact on Chromaticity Measurement:

• Stray light usually has different spectral characteristics from the DUT (e.g., the spectrum of indoor fluorescent lights differs significantly from an OLED screen).
• The inclusion of stray light alters the signal ratios across sensor channels, leading to shifts in color coordinates (x, y).
• In low-luminance areas, interference from the spectral characteristics of stray light is particularly severe for chromaticity measurements.

Impact on Uniformity Measurement:

• If stray light distribution is non-uniform (e.g., entering from only one side), it superimposes a luminance gradient onto the image, distorting uniformity measurement results.
• Edge regions of the display are more susceptible to external stray light due to their proximity to reflection sources like darkroom walls or fixture surfaces.

1.3 Quantifying the Impact of Stray Light

#

A simple example illustrates the impact of stray light on contrast measurement. Suppose a display has the following true parameters in an ideal darkroom:

• White State Luminance: 500 cd/m²
• Black State Luminance: 0.5 cd/m²
• True Contrast Ratio: 500 / 0.5 = 1000:1

If 1 cd/m² of uniform stray light exists in the environment:

• Measured White State Luminance: 500 + 1 = 501 cd/m²
• Measured Black State Luminance: 0.5 + 1 = 1.5 cd/m²
• Measured Contrast Ratio: 501 / 1.5 ≈ 334:1

Just 1 cd/m² of stray light reduces the measured contrast to about 1/3 of its true value. This emphasizes that for high-contrast displays like OLEDs, darkroom quality is vital.

II. Basic Principles of Darkroom Design

#

2.1 Functional Positioning of a Darkroom

#

The core function of a darkroom is to create a measurement space with controllable and extremely low stray light levels. Depending on the application, darkrooms can be classified as:

• Laboratory Grade: Used for R&D and precision metrology. Aims for extremely low stray light, typically requiring ambient illuminance below 0.1 lx.
• Production Line Grade: Deployed at inspection stations on the line. Aims to minimize stray light while ensuring operational feasibility (equipment maintenance, DUT handling).

2.2 Dimensions and Layout

#

Size Principle:

• The darkroom space should be large enough to maintain sufficient distance between the display and the walls. Greater distance reduces the intensity of light reflected back from the walls (following the inverse-square law).
• Empirical recommendation: The shortest internal dimension of the darkroom should be at least 3-5 times the maximum diagonal of the DUT.

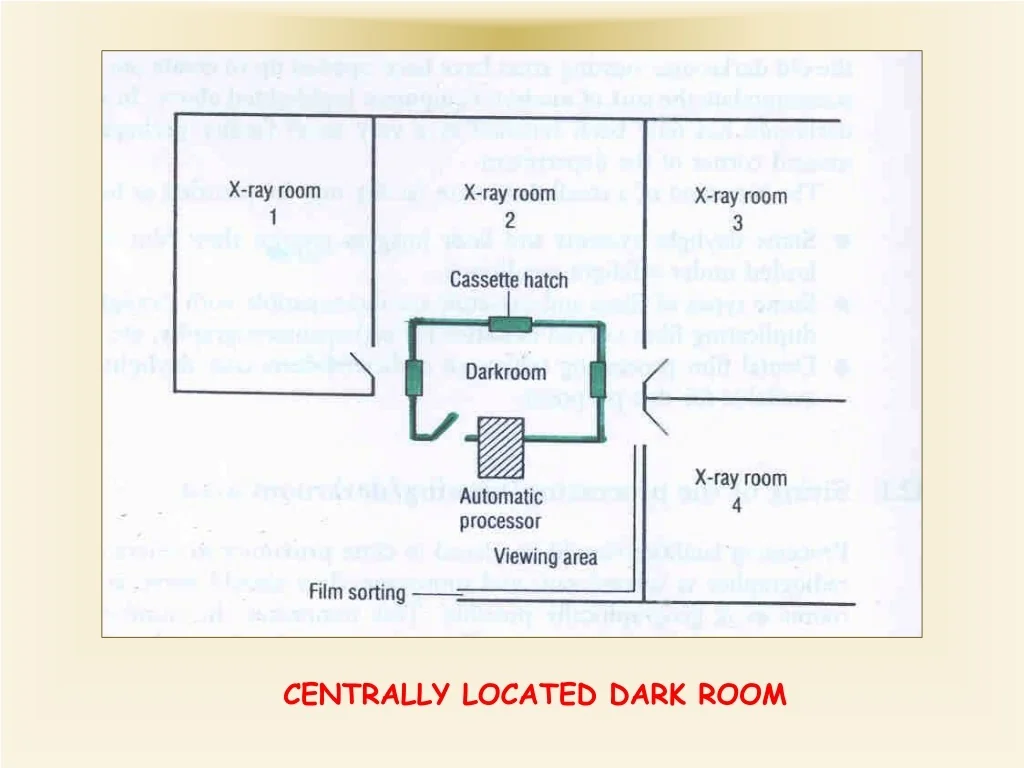

Layout Principle:

• No reflective objects should exist along the optical path between the camera and the DUT.
• Other equipment in the darkroom (cables, mounts, fixtures) should use deep black, matte materials or be covered with black or flocked fabric.
• Doors or openings should use double-layered structures (e.g., maze-like entrances) to prevent external light from shining directly inside.

2.3 Wall and Floor Treatments

#

Internal surfaces must have extremely low reflectivity. Treatments include:

• Darkroom Paint: Professional low-reflectivity paints (optical grade black), with diffuse reflectivity typically below 5%.
• Flocked Fabric / Black Velvet: Placed in critical areas (e.g., around the DUT, wall facing the lens) with reflectivity potentially below 1%.
• Surface Texture: Rough matte surfaces are superior to smooth ones, as smooth surfaces can cause specular reflection.

III. Key Design Points for Light Shields (Baffles)

#

In production environments, building a full darkroom is often impractical. A more practical solution is to design a light shield (also called a dark box) to locally enclose the DUT and camera.

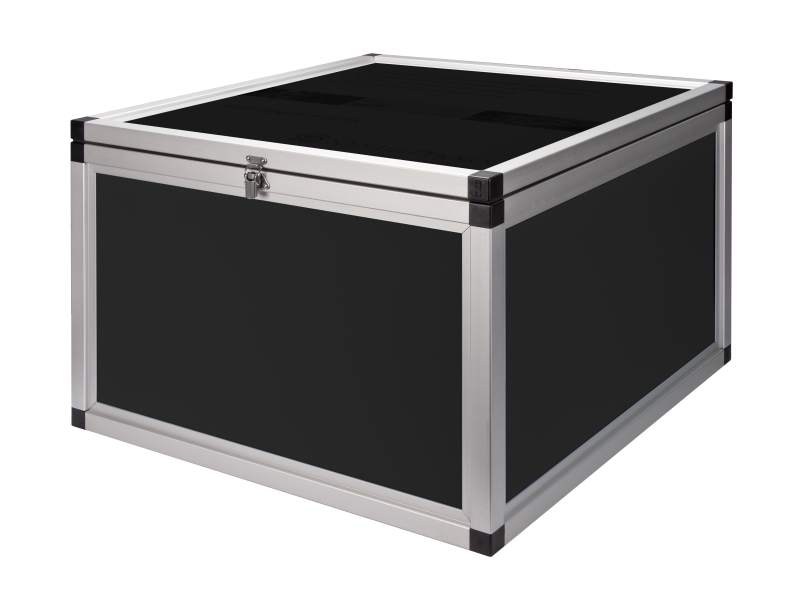

3.1 Basic Structure of a Light Shield

#

A typical production line light shield includes:

• Housing Frame: Aluminum profile or sheet metal structure, rigid enough to withstand vibration and repeated operation.
• Shielding Panels: Material covering the frame, with light-absorbing material applied to the interior.
• DUT Inlet/Outlet: Usually designed as liftable or rotating doors/covers, closed during inspection and open during DUT exchange.
• Camera Mounting Port: Opening at the top or side for the camera, equipped with a light-shielding extension tube.
• Cable Channels: For DUT driving cables and camera data/power cables to pass through.

3.2 Key Design Features

#

Internal Wall Treatment:

• Fully line the interior with black flocked fabric or spray with low-reflectivity paint.
• Focus on walls directly facing the lens and surfaces surrounding the DUT.

Light Leak Prevention:

• Use light-shielding seals at all joints.
• Ensure no gaps between doors/covers and the housing.
• Use flexible shielding sleeves for cable channels.

Heat Dissipation:

• DUTs and cameras generate heat in enclosed spaces. Ventilation paths are needed but must not leak light.
• “Light trap” designs (curved ventilation ducts) allow airflow without a straight-line path for light.

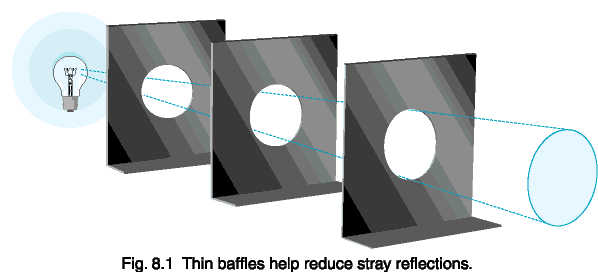

Optical Baffles:

• Placing a series of ring-shaped baffles (similar to lens hood interiors) between the DUT and camera can effectively block side stray light from reaching the sensor.
• Inner surfaces of baffles also require low-reflectivity coatings.

IV. Selection Standards for Light-Absorbing Materials

#

The performance of absorbing materials directly determines the stray light suppression effectiveness.

4.1 Common Absorbing Materials

#

4.2 Selection Criteria

#

• Reflectivity: Lower is better, especially for surfaces within the lens FOV.
• Reflection Type: Diffuse reflection is superior to specular. Even with the same total reflectivity, specular reflection might concentrate light toward the sensor.
• Spectral Characteristics: Low reflectivity should cover the imaging colorimeter’s operating band (usually 380-780 nm).
• Durability: Materials must resist wear, shedding, and dust accumulation in factory environments.
• Outgassing: In sealed shields, some materials might release gases or fibers that contaminate lenses or DUTs. Fiber shedding from flocked fabric and solvent evaporation from paint need evaluation.

V. Relationship between Measurement Distance and Field of View

#

5.1 Choosing Measurement Distance

#

The distance from the camera lens to the DUT surface balances several factors:

FOV Coverage: Lens focal length and sensor size determine the Field of View (FOV) at a given distance. The FOV must cover the entire DUT area, typically with a margin.

Spatial Resolution: Closer distance means smaller DUT area per pixel, yielding higher spatial resolution. However, being too close can cause lens distortion or failure to cover the full DUT.

Stray Light Paths: Closer distance increases the chance of the lens “seeing” the surrounding environment (fixtures, borders), raising stray light risk. Increasing distance can narrow the effective FOV, reducing light from non-target areas entering the lens.

5.2 Distance and FOV Calculation

#

For fixed-focal-length lenses, the relationship between horizontal FOV and measurement distance is:

FOV_width = 2 × distance × tan(Horizontal FOV / 2)

Or equivalently:

FOV_width ≈ distance × (Sensor Width / Focal Length)

During selection, calculate the required focal length based on DUT size and desired distance to ensure full coverage.

VI. Impact of Ambient Light on Low-Luminance Measurement

#

6.1 Challenges in Low-Luminance Measurement

#

Low-luminance measurement (e.g., black-state or low-grayscale luminance) places the strictest demands on environmental control because:

• The signal itself is weak (typically 0.01 - 10 cd/m²), magnifying the relative contribution of any stray light.
• Sensor dark current noise accumulates during long exposures, requiring higher SNR to distinguish signal from noise.
• Chromaticity uncertainty increases significantly as signals approach the sensor noise floor.

6.2 Environmental Requirements

#

For measurements at the 1 cd/m² level:

• Darkroom ambient illuminance should be below 0.01 lx (practically total darkness).
• All equipment indicators (power, network, etc.) must be covered or turned off.
• Personnel should avoid bringing light-emitting devices (like phones) into the darkroom.
• Turn off lights and wait (at least 5 minutes) before measuring to allow eyes to adapt and ensure afterglow from fluorescent materials decays.

6.3 Handling Dark Current and Long Exposures

#

Dark current noise becomes a significant error source. Strategies include:

• Dark Frame Subtraction: Capture a dark frame under identical exposure and temperature conditions with the lens shielded, subtracting it pixel by pixel from measurement images.
• Sensor Cooling: Use an imaging colorimeter with cooling to stabilize the sensor temperature below ambient, significantly reducing dark current.
• Multi-frame Averaging: Average multiple measurements to reduce random noise.

VII. Environmental Requirements for ACR Measurement

#

7.1 Definition and Significance of ACR

#

Ambient Contrast Ratio (ACR) measures display readability in real-use environments. Unlike darkroom contrast, ACR considers reflections of ambient light on the screen, reflecting actual user experience.

The basic ACR formula is:

ACR = (L_white + L_reflected) / (L_black + L_reflected)

where $L_{reflected}$ is the luminance of ambient light reflected off the screen.

7.2 ACR Measurement Methods

#

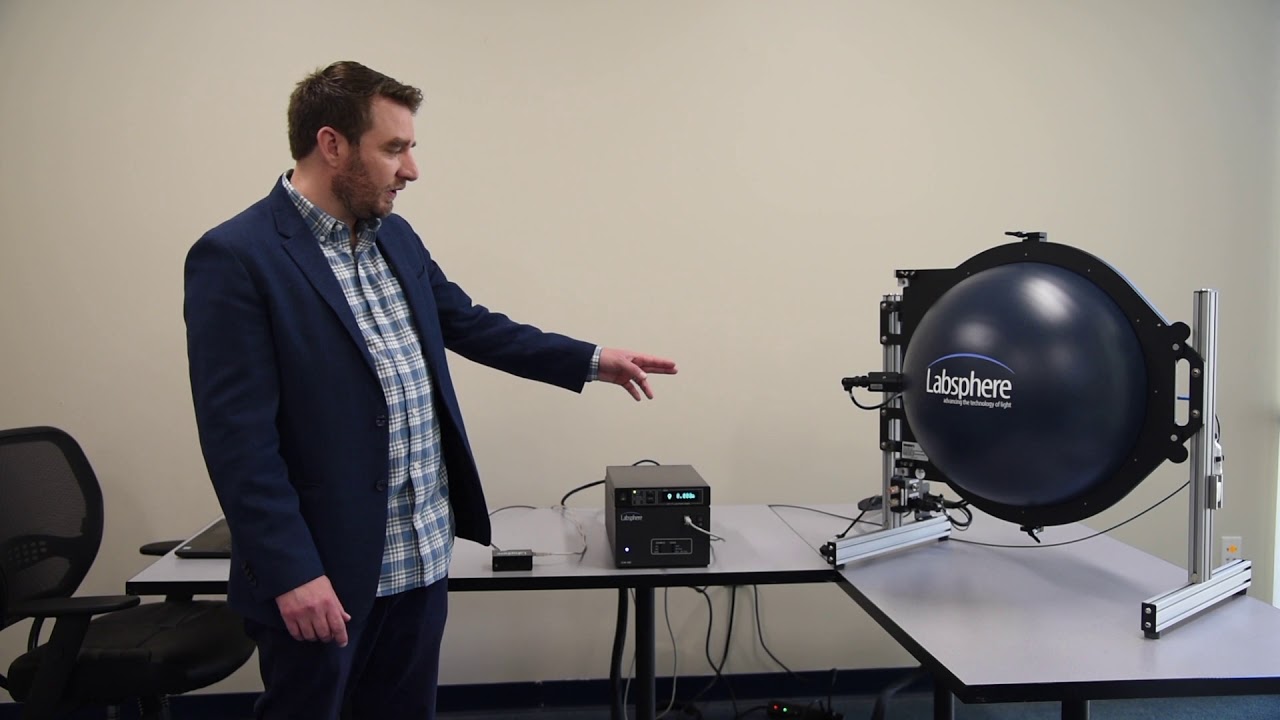

A standard ACR method is the Open Box Method, requiring a controllable, approximately uniform diffuse lighting environment around the display.

Key steps:

1. Darkroom Baseline: Measure inherent white (L_w) and black (L_k) luminance in a darkroom.
2. Controlled Ambient Light: Place the display in an open box or integrating sphere, illuminate with a known-spectrum source, and measure screen luminance and ambient illuminance in white and black states.
3. Calculate Reflectivity: Calculate diffuse reflectivity for white and black states based on luminance differences with and without ambient light.
4. Calculate ACR: Substitute reflectivity values into the formula for specified ambient illuminance.

7.3 Special Requirements for Imaging Colorimeters

#

When performing ACR measurements:

• Veiling Glare: High illuminance in an open box can scatter inside the lens to the sensor, affecting black-state measurement. Use lenses with good anti-glare performance and evaluate their Veiling Glare specs.
• Illumination Uniformity: Non-uniform lighting causes inconsistent reflection across the screen, affecting imaging results.
• Measurement Angle: ACR measurement usually requires near-normal angles (e.g., 8°-10° offset). Mounting angles must comply with standards.
• Spectral Match: The spectrum of the illumination source (e.g., CIE Illuminant A, 2856 K) must comply with standards for repeatability.

VIII. Practical Recommendations

#

8.1 Darkroom Verification

#

After setup, verify the darkroom or shield:

1. Ambient Illuminance: Use an illuminance meter with 0.001 lx resolution to measure residual light at the DUT position.
2. Contrast Verification: Use a standard source with known contrast (or a high-contrast display) to compare contrast measurements inside and outside the darkroom.
3. Stray Light Mapping: Place a uniform black body (e.g., a turned-off screen) at the DUT position and take a long-exposure image to check for non-uniform stray light.

8.2 Daily Maintenance

#

• Regularly inspect flocked fabric and absorbing materials for damage, dust, or fiber shedding.
• Confirm darkroom door and shield seal performance hasn’t degraded.
• Check for new reflective surfaces or uncovered equipment indicators.
• Confirm darkroom status with an illuminance meter before high-precision tasks.

8.3 Troubleshooting Common Issues

#

IX. Summary

#

Stray light control is the foundation of precision measurement for imaging colorimeters. Research labs should build darkrooms to metrology standards with low-reflectivity internal surfaces. Production lines should use light shields at inspection stations, minimizing stray light within automated operation constraints. Low-luminance and ACR measurements are most demanding—the former requiring extreme darkness and the latter requiring controllable, uniform ambient light. Regular verification and maintenance are essential for reliable results in any scenario.

FAQ

#

Q1: How significant is the impact of stray light on display measurement?

#

Stray light can have a dramatic impact. For example, if a display has a true contrast ratio of 1000:1 (white at 500 cd/m², black at 0.5 cd/m²), just 1 cd/m² of uniform stray light reduces the measured contrast to approximately 334:1—only one-third of the true value. Stray light raises dark-area luminance and compresses the dynamic range, with especially severe effects on high-contrast displays like OLEDs.

Q2: What if building a full darkroom on the production line is not feasible?

#

A practical alternative is to design a light shield (dark box) at the inspection station. The shield should include an aluminum-profile frame, shielding panels lined with black flocked fabric or low-reflectivity paint, closable DUT access doors, a camera mounting port, and cable channels. Key design points include using light-sealing gaskets at all joints and employing curved ventilation ducts (light trap design) to balance heat dissipation with light-blocking requirements.

Q3: What is the difference between ACR measurement and darkroom contrast measurement?

#

Darkroom contrast measurement is performed in a completely dark environment, measuring only the inherent white-to-black luminance ratio of the display. ACR (Ambient Contrast Ratio) accounts for the reflection of ambient light on the screen surface in real-world conditions, using the formula ACR=(L_white+L_reflected)/(L_black+L_reflected). ACR measurement requires a controlled, uniform diffuse lighting environment created using an open box or integrating sphere, better reflecting the actual user viewing experience.
