Introduction: When the Cockpit Becomes a “Light Environment”#
Automotive cockpits are undergoing a transformation from mechanical instruments to full digitalization. The cockpit of a modern smart car may simultaneously contain an LCD instrument cluster, a center touch screen, a co-pilot entertainment screen, a HUD (Head-Up Display), and streaming media rearview mirrors, complemented by RGB ambient light strips across door panels, center consoles, and ceilings. These light-emitting elements together constitute a complex optical environment.
When a driver’s gaze shifts between the instrument cluster and the center screen, any obvious difference in white balance (e.g., one appearing bluish and the other yellowish) will be immediately perceived as visual disharmony. Similarly, if ambient lighting fades from warm to cool white while the instrument cluster’s background color remains unchanged, the color temperature conflict between them can disrupt the overall ambiance of the cockpit.
This issue of color and luminance coordination between multiple light sources is a new optical challenge in the era of smart cockpits. It is no longer just a uniformity issue for a single screen but an optical consistency issue among all light-emitting elements within the entire cockpit space.

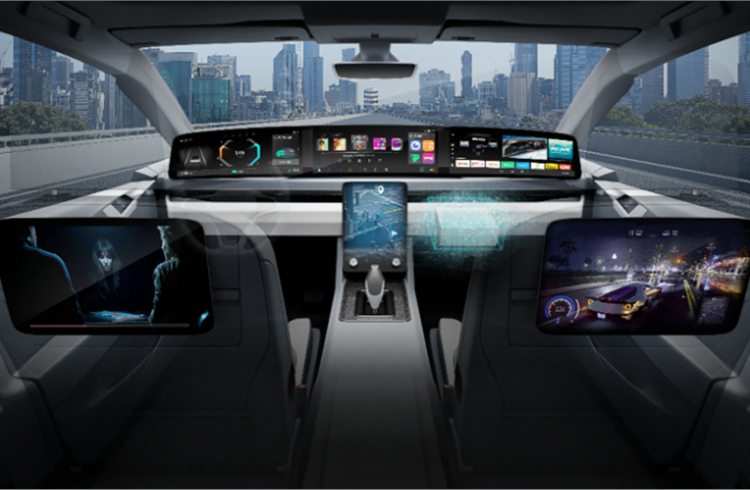

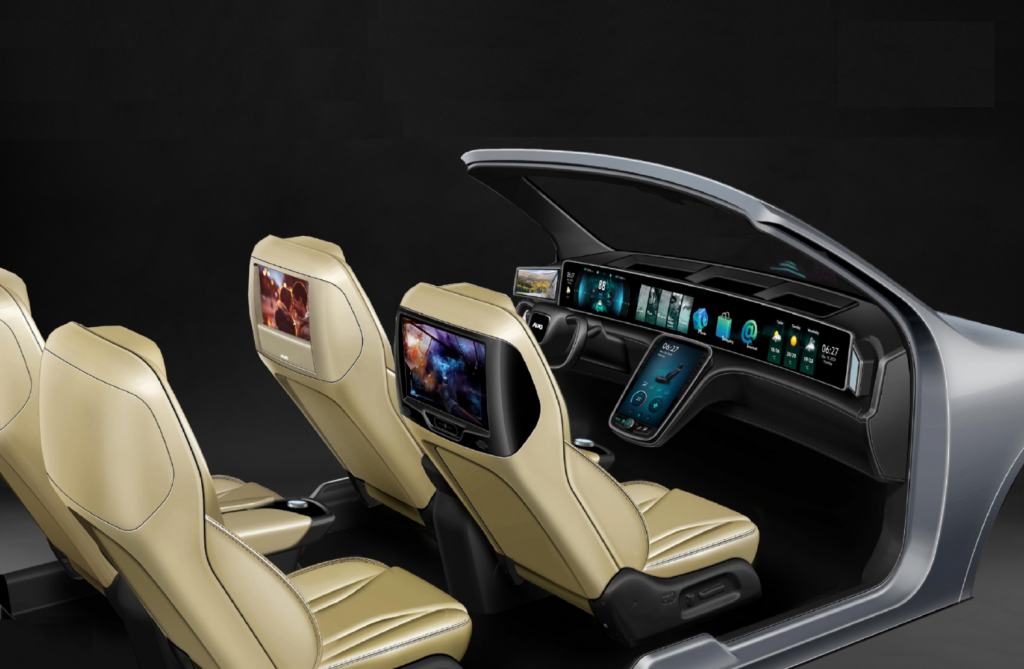

Complexity of the Optical Environment in Automotive Smart Cockpits#

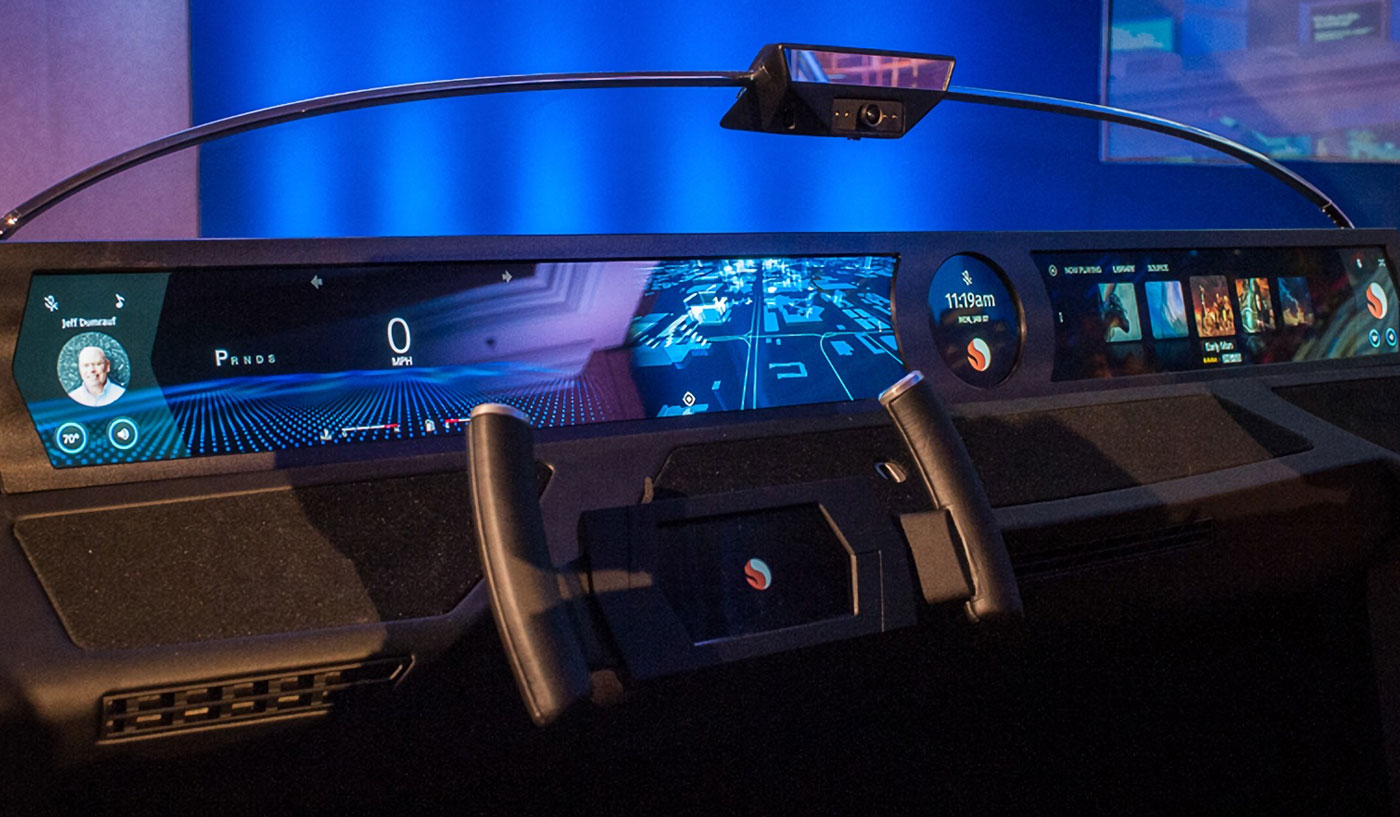

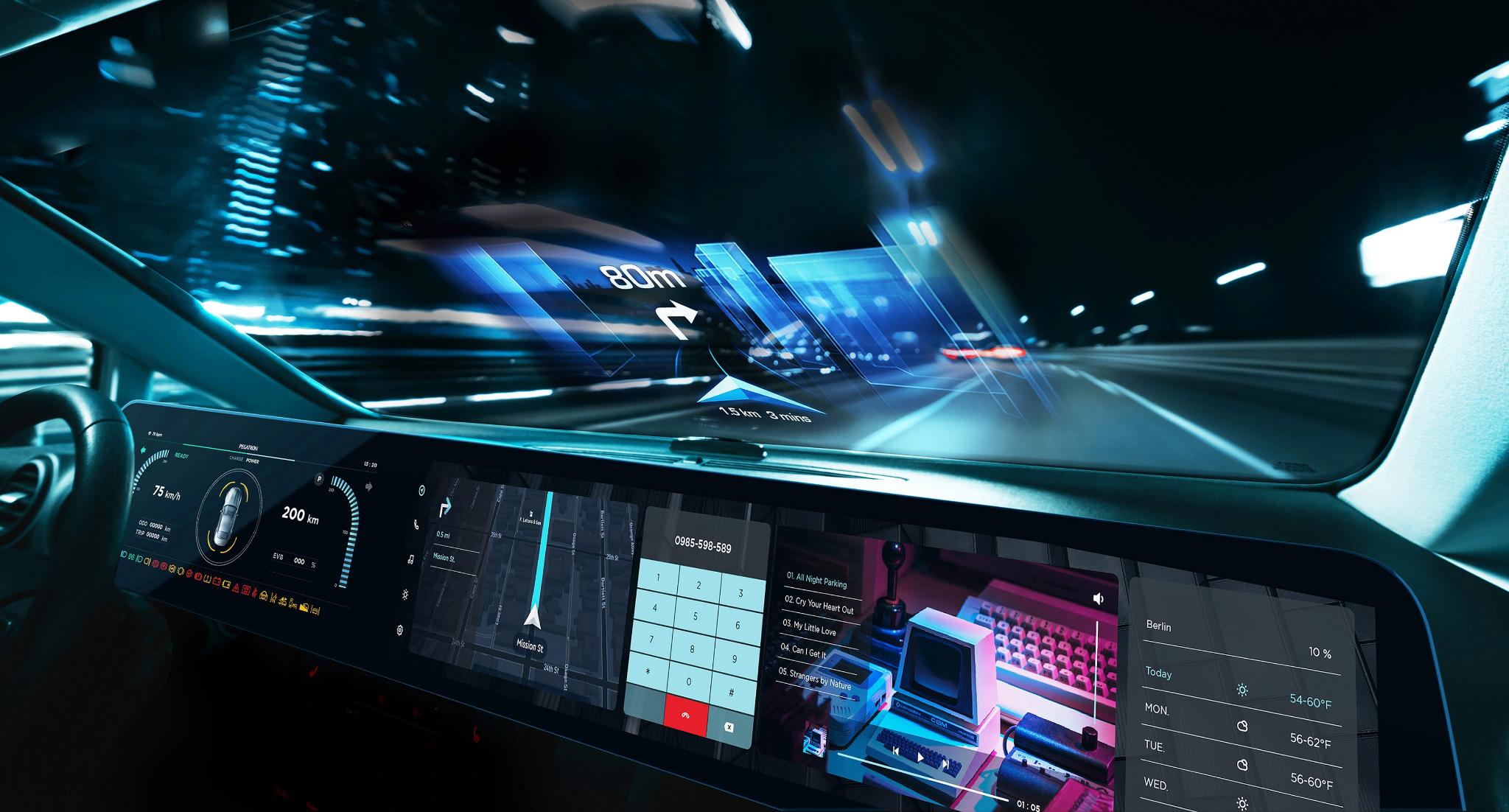

Coexistence of Multiple Display Technologies#
An automotive cockpit often mixes various display technologies:
- Instrument Cluster: Typically uses LCD-TFT, with OLED used in some high-end models.
- Center Screen: LCD, OLED, or Mini-LED backlit LCD.
- Co-pilot Entertainment Screen: May use different suppliers or technical solutions compared to the center screen.
- HUD: Uses TFT-LCD or DLP as a Picture Generation Unit (PGU), projecting onto the windshield via an optical system.
- Rear Entertainment Screens: Independent display modules.
Each display technology has its inherent color gamut, Gamma characteristics, and white balance deviations. Even with the same technology, panels from different suppliers exhibit inter-batch differences in chromaticity coordinates.
Dynamic Interference from Ambient Light#
An automotive cockpit is an open optical environment where sunlight through the windshield and side windows continuously alters the ambient light illuminance and color temperature. On a sunny noon, cockpit ambient illuminance can reach tens of thousands of lux; in a tunnel or at night, it drops to near zero. This vast dynamic range places strict requirements on display readability and color reproduction.
Furthermore, screens at different positions receive different amounts of ambient light—the instrument cluster is usually under a hood and less affected by direct light; the center screen may be directly illuminated by sunlight; the HUD virtual image must overlap with the outdoor real scene through the windshield. This means even if all screens achieve perfect color matching under darkroom conditions, they may appear inconsistent in actual driving due to the differentiated impact of ambient light.
Temperature Gradient Effects#
Automotive cockpits exhibit significant non-uniform temperature distributions. After exposure to summer sun, the area above the instrument cluster can exceed 80°C, while the area below might be only 50°C. Light-emitting characteristics of displays and LEDs are affected by temperature—LCD contrast and response speed change with temperature, OLED luminance decays as temperature rises, and LED wavelengths redshift at higher temperatures. Colorimetric shifts caused by temperature gradients are a hidden threat to cockpit optical consistency.
Challenges in Multi-Screen Color Consistency#
White Point Matching#
The primary issue in color consistency is white point matching. When multiple screens display a white background, the human eye is extremely sensitive to color temperature differences between adjacent screens. In the CIE 1976 u’v’ chromaticity space, a white point deviation (Delta u’v’) exceeding 0.004 between adjacent screens is perceivable by most observers.
Difficulties in white point matching include:
- Nominal white points from different panel suppliers may differ (D65, D50, or custom values).
- White point dispersion exists among different batches from the same supplier.
- The white point of an LCD is determined by both the backlight spectrum and color filters, offering limited adjustment room.
- OLED white points can be adjusted via sub-pixel driving currents, but this affects lifespan.
Color Gamut Mapping#
When screens in the cockpit have different color gamut ranges (e.g., one covering DCI-P3 while another covers only sRGB), displaying the same image content leads to obvious differences in color saturation. Even if software limits the high-gamut screen to sRGB, differences in color mapping at gamut boundaries can still cause visual mismatch.
Luminance Balancing#
Luminance consistency between multiple screens is equally critical. If the instrument cluster luminance is 500 cd/m² while the center screen is 300 cd/m², the driver will experience noticeable brightness jumps when shifting their gaze, increasing visual fatigue. A more complex situation occurs when different screens have inconsistent automatic brightness control algorithms, causing asynchronous luminance responses to changing ambient light.
Gamma Consistency#
The Gamma curve determines a display’s luminance response to various grayscale inputs. If two screens have different Gamma values (e.g., one at 2.2 and another at 2.4), the visual experience will differ significantly when displaying grayscale gradients or shadow details—the screen with higher Gamma will have darker shadows and more compressed mid-tones.
Coordination of Luminance and Chromaticity between Ambient Lighting and Screens#
Evolution of Ambient Lighting’s Role#

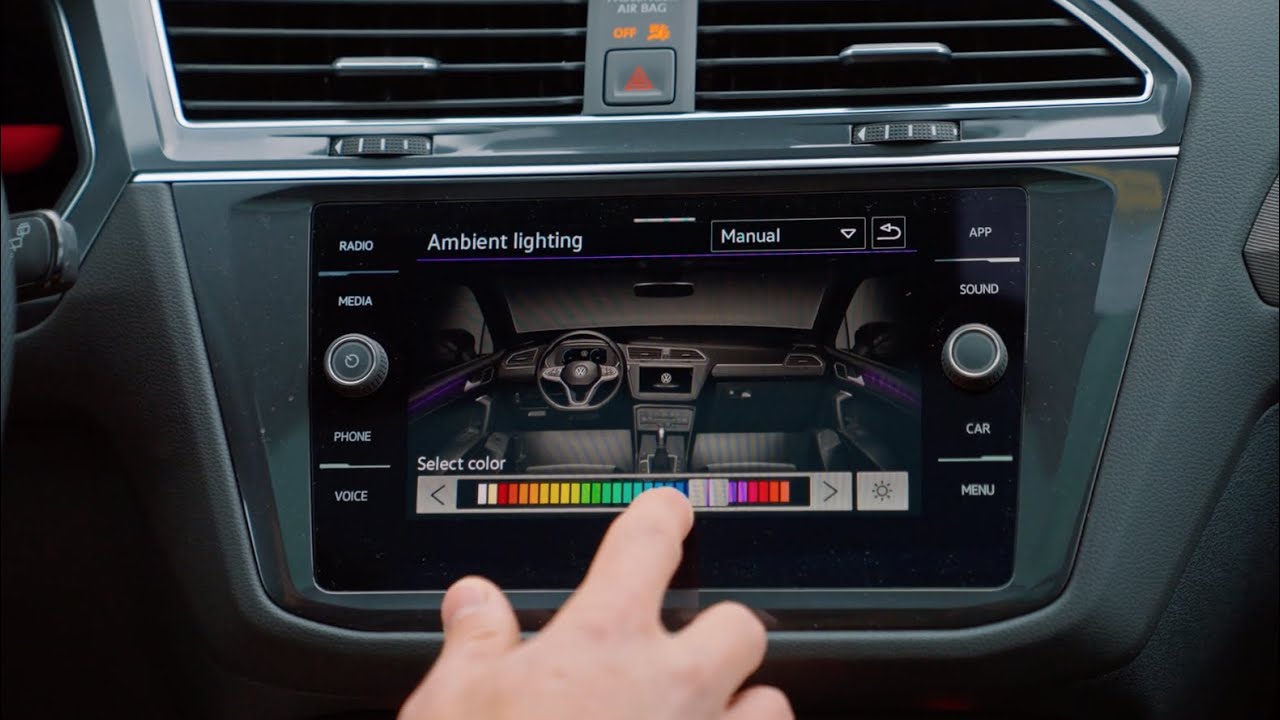

Automotive ambient lighting has evolved from a simple decorative feature to a smart cockpit element integrating auxiliary lighting and scene interaction. Modern ambient lighting systems use independently addressable RGB or RGB-W LEDs, enabling millions of color combinations and dynamic gradient effects. In different driving scenarios like “Theater Mode,” “Sport Mode,” or “Comfort Mode,” the color and luminance of ambient lighting change coordinately to complement the screen content.
Particularities of Color Matching#
Color matching between screens and ambient lighting faces unique challenges. Their light-emitting principles differ (panel pixel emission vs. indirect lighting from LED point sources through diffusion materials), as do their viewing conditions (direct view for screens vs. indirect vision for ambient lighting). The human eye’s color perception mechanisms for the two are different.
Key parameters to focus on in engineering include:
- Correlated Color Temperature (CCT) Matching: When ambient lighting is set to a certain color temperature (e.g., 3000K warm white), the interface background or status bar colors on screens need to coordinate with it.
- Colorimetric Tolerance: Wavelength dispersion of LEDs (typically within ±2~5 nm) leads to chromaticity differences within the same batch, requiring control through binning or electronic correction.
- Luminance Contrast: Ambient lighting should not interfere with screen readability or create jarring brightness contrasts in dark environments.
Color Temperature Drift Control#
LED wavelengths drift with temperature, with red LEDs specifically having a temperature coefficient of about 0.1~0.2 nm/°C. In the fluctuating temperature environment of a car cockpit, ambient light color temperature can shift perceivably within dozens of minutes. Solutions include integrating temperature sensors in LED modules for real-time current adjustment or using negative temperature coefficient materials for passive compensation.
OEM Standard Requirements for Optical Consistency#
Automotive OEMs have explicit and strict specification systems for cockpit optical consistency.
German Flat Panel Display Forum (DFF) Standards#
The German Automotive OEM working group published the “Display Specification for Automotive Application,” covering comprehensive requirements for displays in optical, electrical, mechanical, and environmental aspects. Content directly related to optical consistency includes:
- Measurement methods and acceptance criteria for luminance uniformity.
- Evaluation metrics for chromaticity uniformity (Delta u’v’ thresholds).
- Specialized test standards for Black Mura (such as the Black MURA standard mentioned previously).
- Contrast and readability requirements under various ambient light conditions.
Uniformity Measurement Standard for Displays (UMSfD)#
The German Automotive OEM working group also specifically released the “Uniformity Measurement Standard for Displays” (UMSfD), defining specific test methods including Black Mura. This standard is based on the human Contrast Sensitivity Function (CSF) and JND models, relating physical measurements with visual perception to ensure inspection results reflect the actual visual experience of the driver.
SAE Standards#
Related standards from the Society of Automotive Engineers (SAE) also pose requirements for the optical performance of automotive displays and HUDs. SAE J1757-2 defines test methods for HUDs, and SAE J578 covers chromaticity requirements for vehicle lighting systems.
Internal OEM Specifications#
Beyond industry standards, OEMs typically have more detailed internal specifications covering white point tolerance between multiple screens, Gamma matching precision, luminance ratio ranges, and color temperature coordination requirements between ambient lighting and screens. These internal specifications are often stricter than public standards and are continuously iterated with the development of new car models.
Inspection Solutions using Imaging Colorimeters on Production Lines#
Display Screen Final Inspection#
Each screen must undergo comprehensive inspection by an imaging colorimeter before shipping. Inspection items include:
Luminance and Chromaticity Uniformity. Collect full-screen luminance and chromaticity distribution maps using an imaging colorimeter to evaluate uniformity metrics. For automotive screens, the Black Mura test is a mandatory item, requiring luminance gradient analysis under black field conditions.
White Point Calibration Validation. Verify whether the actual white point of the screen is within the chromaticity tolerance ellipse specified by the OEM. If the deviation exceeds standards, some solutions allow for online correction by adjusting driving parameters.
Gamma Curve Validation. Input standard grayscale sequences, measure actual luminance output, fit the Gamma curve, and compare it with target values.
Contrast Measurement. Measure luminance under full white and full black frames, calculate the contrast ratio, and evaluate whether it meets readability requirements under specified ambient illuminance conditions.
Multi-Screen Consistency Matching#
For multiple screens intended for the same vehicle, some OEMs require consistency matching—detecting all screens simultaneously or sequentially in the same test station to ensure that white point deviations, luminance differences, and Gamma variances among them are within allowed ranges. This places high demands on the repeatability and long-term stability of the inspection system.
Ambient Lighting Inspection#
Optical inspection focuses for ambient lighting include:
- Color Accuracy: Measuring the chromaticity coordinates of LEDs under specified driving conditions to determine if they are within target tolerance ranges.
- Color Uniformity: Measuring chromaticity at multiple points along the light strip to evaluate end-to-end consistency.
- Luminance Uniformity: Evaluating luminance changes across different segments of the light strip.
- Color Temperature Switching Accuracy: Verifying chromaticity accuracy when switching between different preset color temperature modes.
The advantage of imaging colorimeters over spot measurement devices lies in their ability to capture the spatial distribution of luminance and chromaticity for the entire light strip in one acquisition, significantly improving inspection efficiency.
Vehicle-Level Validation#
In some OEM quality systems, final vehicle-level optical validation is also included in the process. In the vehicle-ready state (all screens lit, ambient lighting running), an imaging colorimeter is used to capture the optical distribution of the entire cockpit from the driver’s perspective, comprehensively evaluating the coordination of color and luminance between multiple screens and between screens and ambient lighting.
Although vehicle-level validation is costly, it can capture system-level issues that component-level inspection might miss, such as ambient light reflections from different screens interfering with each other or the washout effect of ambient lighting on screen content at specific angles.
Engineering Practices in Production Line Inspection#
Darkroom Environment Control#
Optical inspection of automotive displays and ambient lighting is typically conducted in a darkroom with ambient illuminance controlled below 1 lux to eliminate stray light interference. The interior walls are treated with low-reflectivity materials (reflectivity < 5%) to prevent reflected light from affecting results.
Measurement Geometry#
The relative position between the imaging colorimeter and the screen under test must be precisely controlled. Vertical incidence measurement geometry (where the camera’s optical axis is perpendicular to the screen surface) is usually adopted for the most accurate data. For scenarios evaluating viewing angle characteristics, rotation stages are used to change measurement angles, or conoscopic lenses are used for viewing angle distribution measurement.
Takt Time Optimization#
Takt Time requirements for automotive display production lines are typically in the range of 10~30 seconds per panel. Within this window, multiple test pattern switches and captures, image processing and analysis, OK/NG judgments, and data storage must be completed. Optimization strategies include using high-frame-rate cameras to reduce acquisition time, employing GPU acceleration for image processing, and using pipeline architectures to execute acquisition and analysis steps in parallel.
Data Management and Traceability#
Inspection data for each screen (including luminance maps, chromaticity maps, uniformity metrics, JND maps, etc.) must be bound to the product serial number and stored in a database for full-lifecycle quality traceability. If a customer reports a quality issue, the factory inspection data can be traced back to locate the source of the problem.
Future Outlook#
As the number and functionality of cockpit screens continue to grow, optical consistency management is evolving from static factory calibration to dynamic run-time coordination. Automotive display processors are starting to integrate color management engines capable of adjusting each screen’s white point and Gamma in real-time based on sensor feedback; adaptive ambient lighting control systems can sense ambient light changes and automatically adjust color temperature and luminance. This closed-loop dynamic color management capability will be a key technical direction for the future of smart cockpit optical consistency.
FAQ#
Q1: What is the biggest challenge for multi-screen color consistency in smart cockpits?#
The biggest challenge is white point matching. When multiple screens display a white background, the human eye is extremely sensitive to color temperature differences between adjacent screens—in the CIE 1976 u’v’ chromaticity space, a Delta u’v’ exceeding 0.004 is perceivable by most observers. The difficulty lies in different panel suppliers having different nominal white points, inter-batch white point dispersion from the same supplier, limited adjustment room for LCD white points determined by backlights and color filters, and OLED white point adjustment affecting lifespan. Additionally, color gamut mapping, luminance balancing, and Gamma consistency must all be addressed.
Q2: What makes color matching between ambient lighting and screens particularly difficult?#
Three unique challenges exist: first, their light-emitting principles differ (panel pixel emission vs. indirect lighting from LEDs through diffusion materials), viewing conditions differ (direct vs. indirect vision), and the human eye perceives their colors through different mechanisms; second, LED wavelength dispersion (typically plus or minus 2-5nm) causes chromaticity differences within the same batch, requiring control through binning or electronic correction; third, LED wavelengths drift with temperature—red LEDs have a temperature coefficient of about 0.1-0.2nm per degree Celsius, causing perceivable color temperature shifts within dozens of minutes in the fluctuating temperature environment of a car cockpit.
Q3: What standards do OEMs require for automotive display optical consistency?#
Three main categories exist: the German Flat Panel Display Forum (DFF) published the Display Specification for Automotive Application, covering luminance uniformity, chromaticity uniformity with Delta u’v’ thresholds, Black Mura testing, and contrast requirements; the German Automotive OEM working group released the Uniformity Measurement Standard for Displays (UMSfD), linking physical measurements with visual perception through CSF and JND models; and SAE standards like J1757-2 for HUD test methods and J578 for vehicle lighting chromaticity requirements. OEMs typically also maintain stricter internal specifications covering multi-screen white point tolerance, Gamma matching precision, and more.
